Certified Off-Grid Lithium & 230V Inverter Campervan Fitting Service
Professional supply-and-fit electrical upgrade engineered specifically for pre-converted campervans, motorhomes, and commercial panel vans. This fully integrated system provides sustained 230V mains power for induction cooking, microwaves, air fryers, and continuous 12V refrigeration. Every installation is hardwired to strict BS 7671 (18th Edition) and BS EN 1648-2 standards by certified Approved Workshop Scheme (AWS), National Caravan Council (NCC) Academy, and IMI Level 3 TechSafe EV/hybrid training auto-electrical technicians.

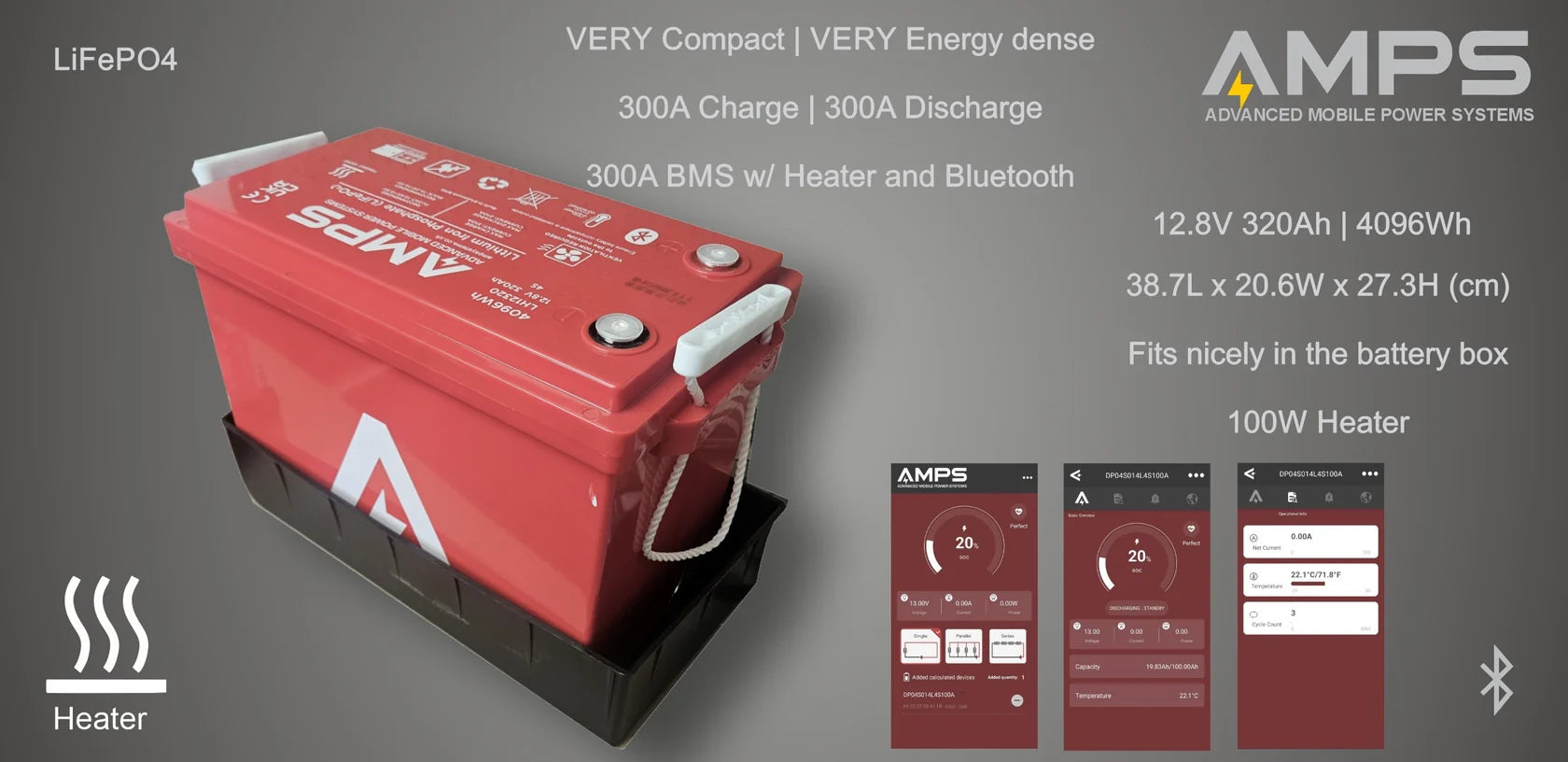

🔋 Step 1: Choose Your Lithium Storage Bank
High-density, smart deep-cycle LiFePO4 chemistry with integrated Battery Management Systems (BMS), rapid charge acceptance, and flat voltage delivery:
• Space-Saving Footprint: Compact single-casing design (360mm L x 310mm W x 160mm H) delivering more usable energy than three 110Ah AGM batteries at a fraction of the weight.
• Balanced Parallel Configuration: High-amperage dual-battery setup designed for maximum continuous inverter load stability.
⚡ Step 2: Select Your Pure Sine Wave Inverter (with UPS Auto-Transfer)
Clean 230V AC output with integrated Uninterruptible Power Supply (UPS) automatic transfer switching to seamlessly swap between shore hook-up and inverter power:
Mains AC-to-DC charging and no-load consumption

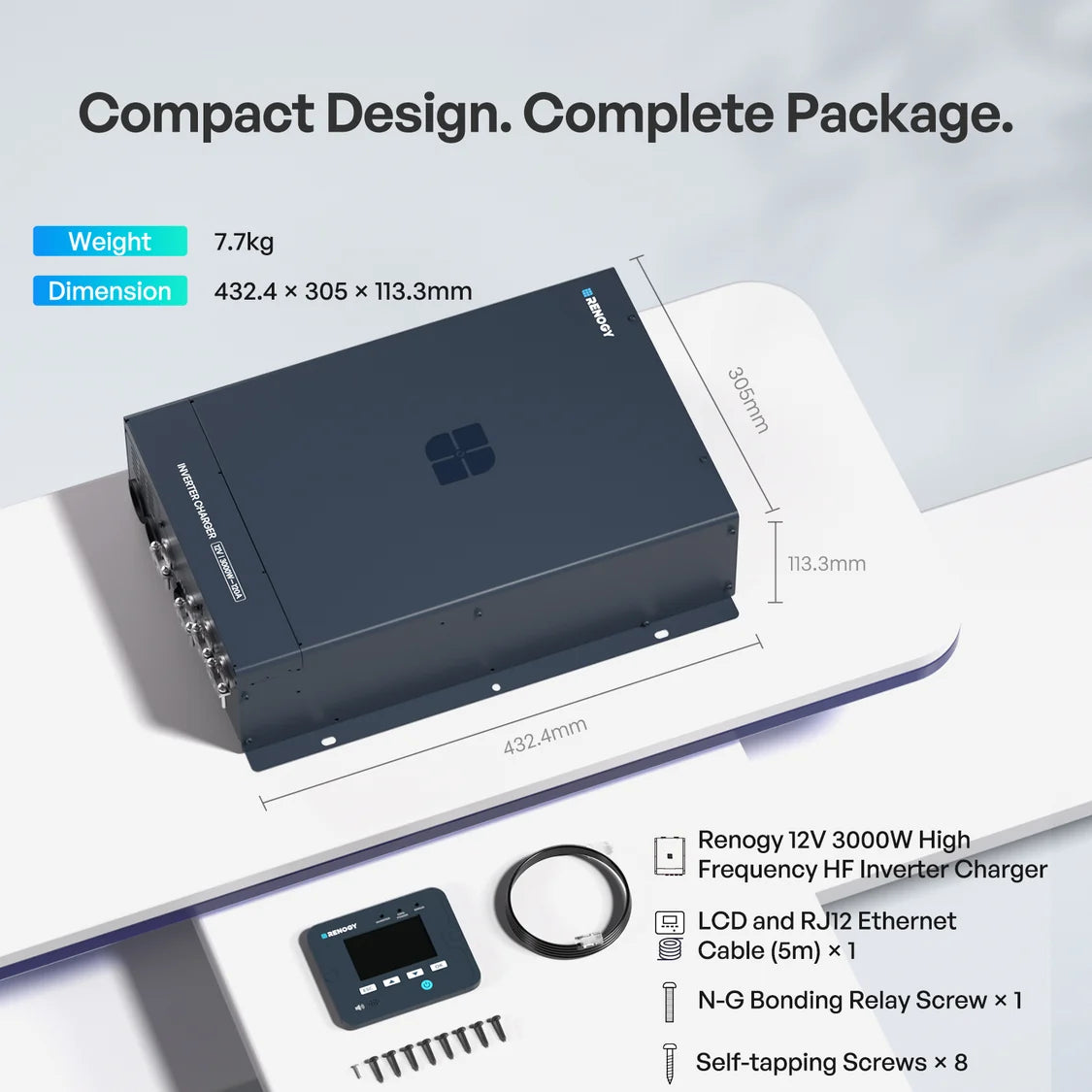

The Renogy Core 2000W inverter’s mains AC-to-DC battery-charging current is adjustable from 5A to 80A in 5A increments.
The Renogy Core 3000W inverter’s mains AC-to-DC battery-charging current is adjustable from 5A to 120A in 5A increments.
Both inverter models have a stated no-load power consumption of 10W. This describes power used by the inverter itself with no AC appliance load, not the power consumption of connected appliances.
These mains charging ratings are separate from the 25A or 40A vehicle DC-to-DC charger. Select the mains charging current to suit the battery bank and available shore-power supply.
🛠️ Step 3: Split Charging, Harnessing & Safety Isolation Grid Included

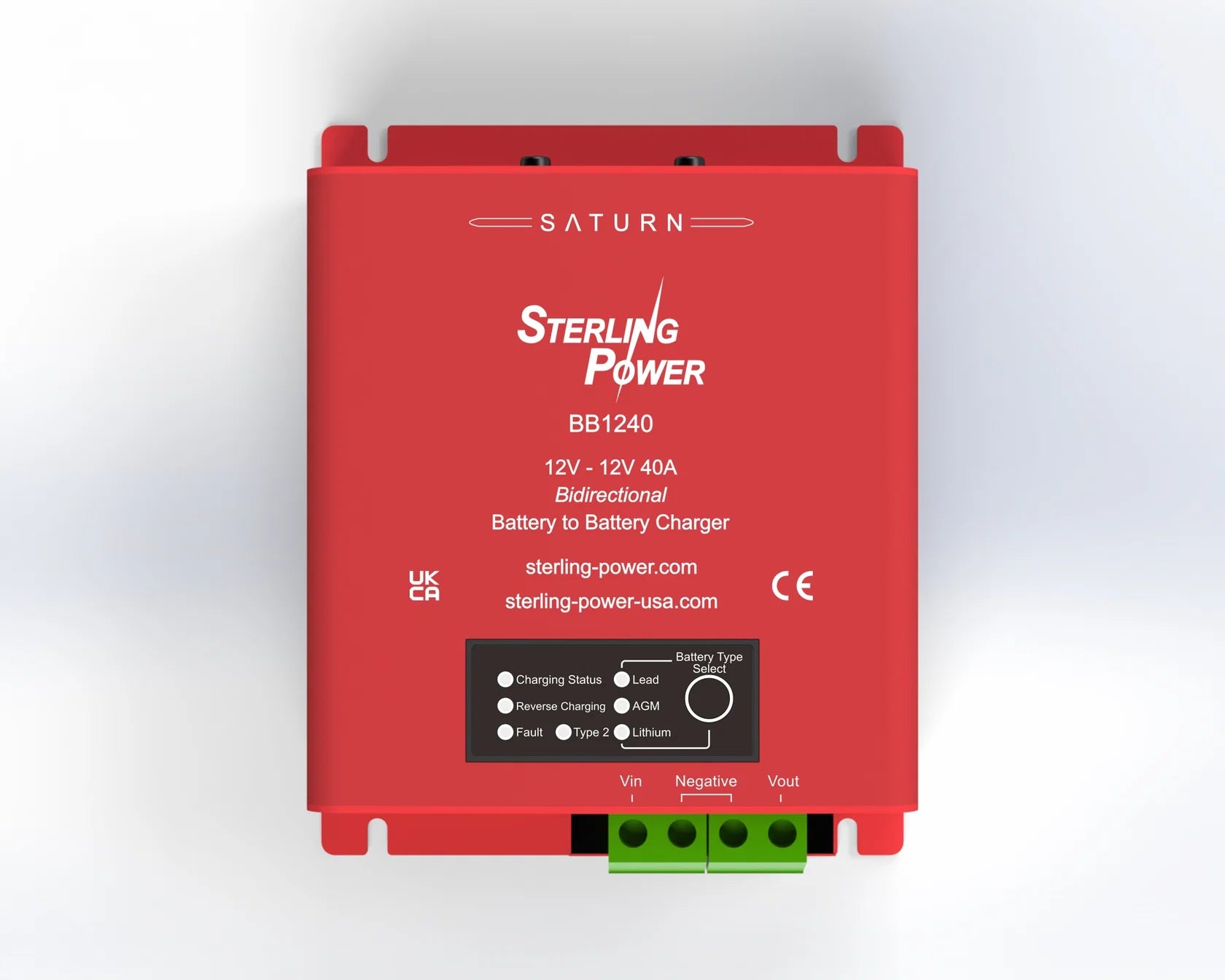

- Smart DC-to-DC Split Charger — Vehicle-Matched Output: Rapid on-the-road replenishment with a charger spec matched to your drivetrain. EV, hybrid, and mild-hybrid campervans receive a 25A Sterling Power BB-series charger — purpose-built for low-voltage auxiliary feeds, regenerative braking, and step-down EV systems. Fossil fuel campervans and motorhomes (petrol/diesel, Euro 5/6 smart alternators) receive a 40A Sterling Power BB-series charger — delivering higher charge current to maximise alternator output during longer drives. Both units automatically step up alternator voltage and are 100% compatible with their respective systems.
- Heavy-Duty Alternator Feed Harness: Complete 5m run of 16mm² (6 AWG) flexible copper cable protected by an inline 80A safety fuse.
- Dual Battery MRBF Terminal Isolation: Houses the main high-amperage inverter fuse (250A or 400A) alongside an independent 30A fuse line dedicated to protecting existing 12V living circuits.
- R10 Chassis Earth Bonding & Safety Isolation: Vehicle ground strap and integrated 16A RCD breaker guaranteeing compliance with UK leisure vehicle insurance and safety standards.
- Remote Interior Monitor: Cabin-mounted remote display for real-time inverter telemetry, power draws, and operational control.
📋 System Technical Specifications & Standards
| System Parameter | Technical Standard & Performance |
|---|---|

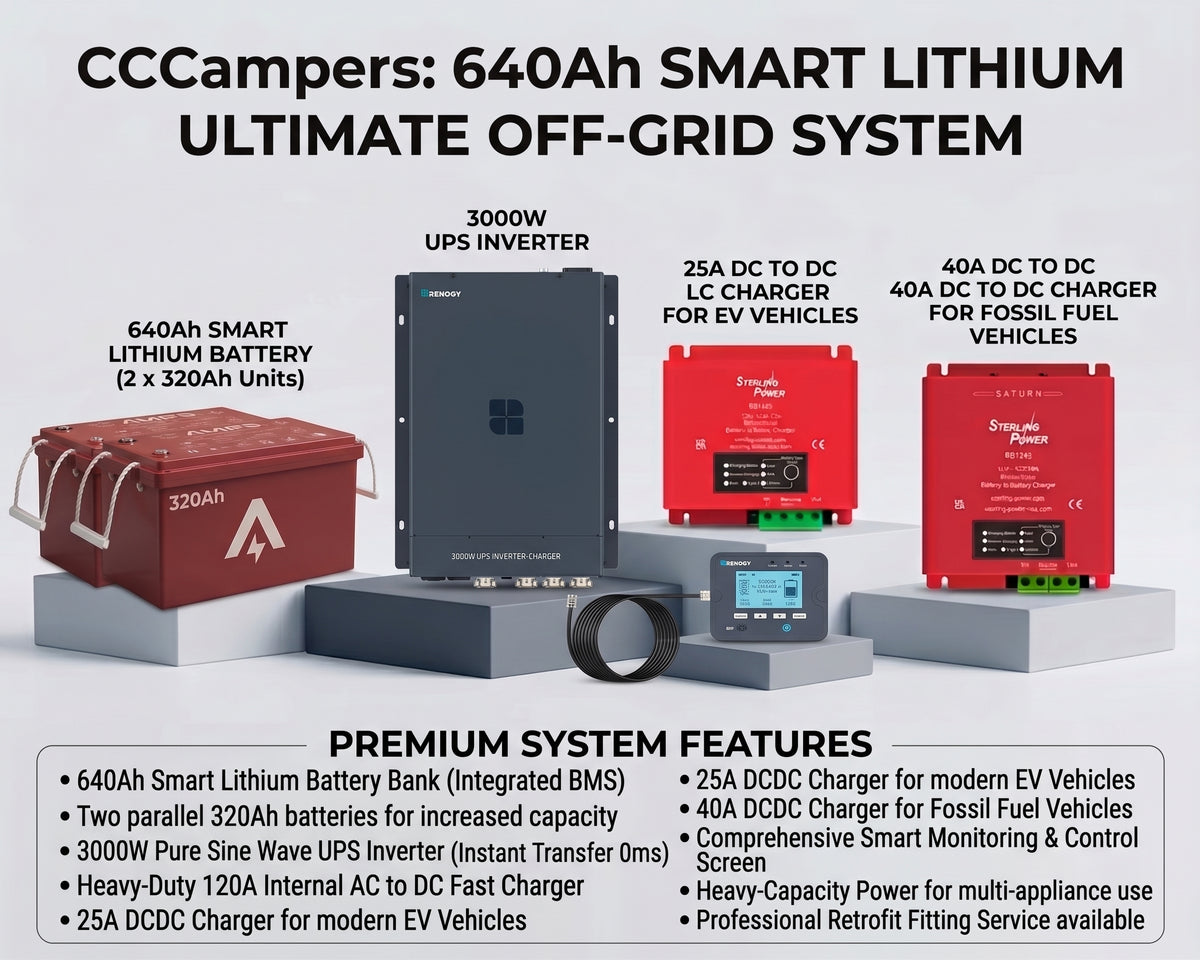

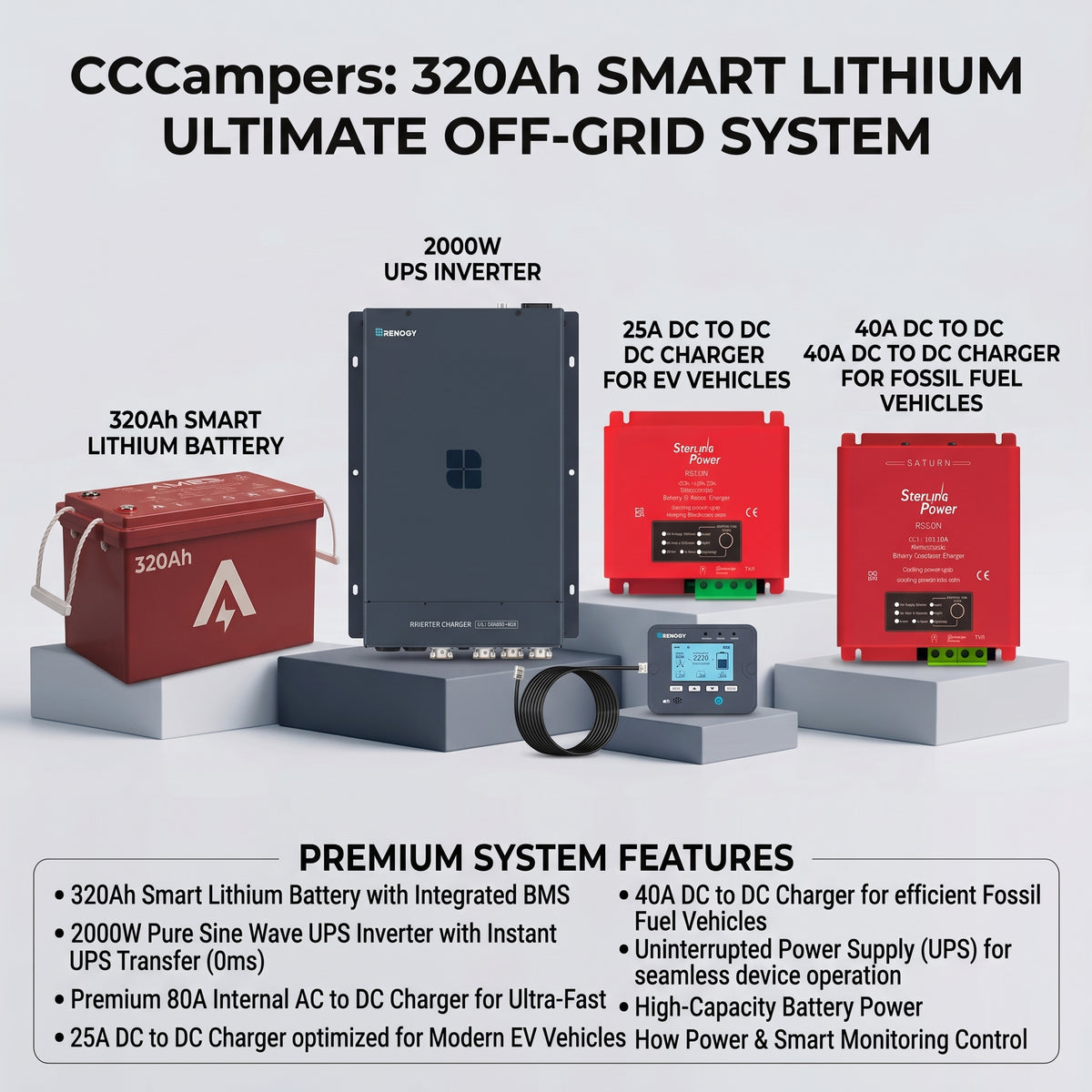

| Battery Chemistry & Capacity | 12.8V 320Ah (4.09kWh) or 640Ah (8.19kWh) Smart LiFePO4 |
| 230V Inverter Continuous Output | 2000W or 3000W Pure Sine Wave with Automatic UPS Transfer |
| Driving Split Charge Profile | 25A DC-to-DC for EV, hybrid and mild-hybrid vehicles; 40A DC-to-DC for petrol/diesel vehicles (16mm² cable / 80A fused line) |
| Terminal Fusing & Distribution | Dual MRBF Terminal Block (250A/400A Inverter + 30A Auxiliary Line) |
| Regulatory & Safety Compliance | BS 7671 (18th Edition), BS EN 1648-2, R10 Earth Bonded, 16A RCD |
| 2000W inverter: mains AC-to-DC charging | Adjustable 5A–80A in 5A increments |
| 3000W inverter: mains AC-to-DC charging | Adjustable 5A–120A in 5A increments |
| Inverter no-load power consumption | 10W for either model |
❓ Frequently Asked Questions
📍 Where is this off-grid campervan power system installed? All electrical retrofits and lithium upgrades are carried out in-house by appointment at our conversion facility: CCCAMPERS, Woodside Business Park, Beach Hay, Bayton, Kidderminster, Worcestershire, DY14 9NE.
🇬🇧 Is this system fully compliant with UK vehicle electrical standards? Yes. Unlike ungrounded portable power stations, our installation is hardwired into your living circuits, chassis earth-bonded, and fused to strict BS 7671 and BS EN 1648-2 standards, maintaining full leisure vehicle insurance validity.
🔋 Does this work with Euro 6 smart alternators and electric campervans? The vehicle-matched DC-to-DC charger is separate from the inverter’s mains AC-to-DC charger. EV, hybrid and mild-hybrid installations use a 25A DC-to-DC charger; petrol and diesel installations use a 40A DC-to-DC charger. The exact vehicle and charging arrangement are checked before fitting.
What is the mains charging range of the 2000W inverter?
The Renogy Core 2000W inverter’s mains AC-to-DC battery-charging current is adjustable from 5A to 80A in 5A increments.
What is the mains charging range of the 3000W inverter?
The Renogy Core 3000W inverter’s mains AC-to-DC battery-charging current is adjustable from 5A to 120A in 5A increments.
How much power do the inverters use with no appliance load?
Both inverter models have a stated no-load power consumption of 10W. This describes power used by the inverter itself with no AC appliance load, not the power consumption of connected appliances.
🍳 Complete Your Off-Grid Van Kitchen
Once your inverter system is fitted, power these low-wattage appliances all day without shore power:
Flip between air fryer and electric hob — two appliances in one, 800W inverter-friendly draw.
1.2L cordless kettle with auto shut-off — perfect for inverter and off-grid setups.
Cool touch, timed cook cycles — low wattage toaster that won’t trip your hook-up or overload your inverter.
📍 In-Person Workshop Installation
This is a fully fitted, in-house workshop service carried out by appointment at our dedicated conversion facility:
CCCAMPERS Fitting Hub:
Woodside Business Park, Beach Hay, Bayton, Kidderminster, DY14 9NE
CCCampers workshop and qualifications
The CCCampers team is NCC Academy Trained, has IMI Level 3 TechSafe EV/hybrid training and operates an AWS Approved Workshop. We specialise in campervan conversions and all-electric campervan work. Our team has experience with VCA vehicle approval processes.
Workshop: CCCampers Ltd, Units 3–5, Woodside Business Park, Beach Hay, Bayton, Kidderminster, Worcestershire, DY14 9NE, United Kingdom. Workshop visits are by appointment.
