Shelsley Kia PV5 Campervan Conversion
Classic campervan living, with the comfort of electric touring.
The Shelsley by CCCampers brings a familiar, practical campervan layout to your own Kia PV5. A side kitchen keeps everyday essentials close to hand, rear seating converts into a bed, and the Stargaze panoramic pop-top creates a more open living space when parked.
Put the kettle on after a walk, prepare supper at your own pace and settle in for the evening. The Shelsley combines the reassuring simplicity of a classic campervan with gas-free cooking and access to the Kia’s driving battery through its factory-fitted Vehicle-to-Load supply.
Conversion prices start from £24,999. You supply a suitable Kia PV5 Cargo or Passenger; the base vehicle is not included. We design and fit your conversion at our workshop in Bayton, near Kidderminster, Worcestershire.
The standard specification requires factory-fitted heat pump and 3.6 kW Vehicle-to-Load (V2L). We check your individual vehicle, seating requirements and payload before agreeing the build.
Rear-seat ISOFIX mounting points are included on a fixed Rock ’n’ Roll bed, subject to the final approved seating configuration and child-seat compatibility. A roof bed and mattress are optional extras. A bed-on-rails upgrade is available
Both the standard fixed bed and optional sliding bed have the same laid-flat sleeping dimensions: 1,100mm wide × 1,830mm long (approximately 3ft 7in × 6ft). The optional £3,000 upgrade adds the sliding rail system, not a larger sleeping area.
Typical build time is 6–8 weeks from drop-off, with scheduling confirmed during consultation.
Book a Shelsley conversion consultation
If the video does not load, watch the CCCampers electric campervan conversion overview on YouTube (opens in a new tab).
Shelsley or Witley: which layout suits you?Tap or click to expand / collapse

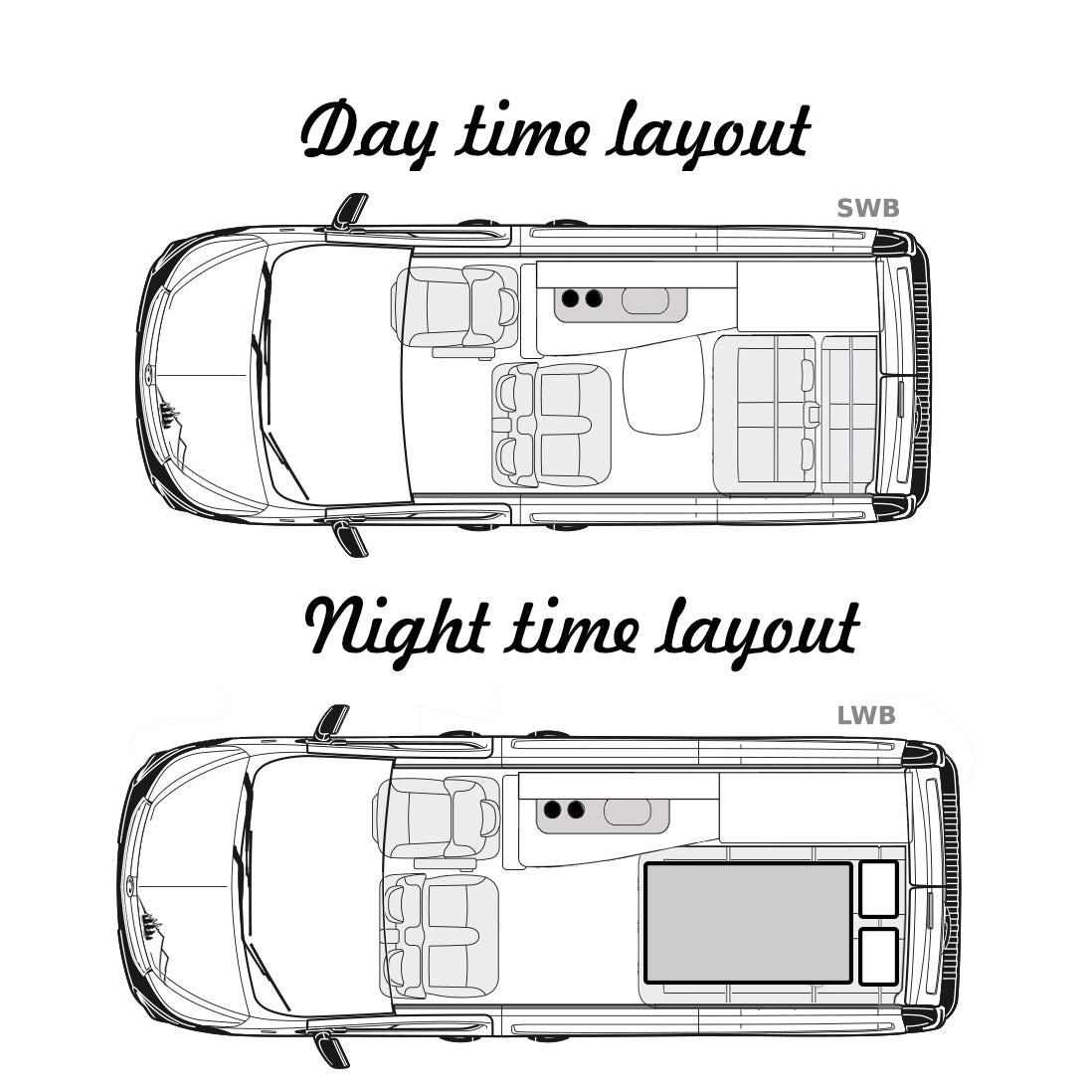

Choose the Shelsley for a classic side kitchen and rear Rock ’n’ Roll seat bed in a suitable Kia PV5 Cargo or Passenger. Rear-seat ISOFIX mounting points are included, subject to the final approved configuration and child-seat compatibility.
Choose the Witley for a Cargo-only conversion with twin or full-width sleeping arrangements, a rear kitchen and a slide-out cassette toilet. ISOFIX is not included in the Witley layout.
For wider platform and planning information, read our Kia PV5 campervan conversion guide. Suitability is confirmed against your individual vehicle rather than the model name alone.
Looking for a Kia PV5? Speak to our Kia PBV Centre contactTap or click to expand / collapse
If you are sourcing a Kia PV5 for a CCCampers conversion, speak to Steve Herling at Brindley (West Bromwich) – PBV.
Address: Brindley (West Bromwich) – PBV, Tipton, DY4 7BX
Sales: 0121 826 1260
Ask for Steve Herling and quote “CCCAMPERS” to enquire about extra discounts. Ask Steve to confirm the current offer, any conditions and whether the quoted price already includes an applicable government grant.
Before ordering, send CCCampers the proposed vehicle’s factory specification so we can check its suitability for your chosen conversion: Witley with twin sliding doors or Shelsley with a single sliding door. Both require a factory-fitted heat pump and 3.6 kW Vehicle-to-Load.
Buying a new Kia PV5 Cargo: check the current van grantTap or click to expand / collapse
If you intend to buy a brand-new Kia PV5 Cargo and supply it to CCCampers for conversion, ask the selling dealer about the government’s current zero-emission van grant before ordering.
The Kia PV5 Cargo is currently listed among eligible large vans, with a discount of 35% of the purchase price, capped at £5,000, subject to the scheme’s current conditions and availability.
The dealer or manufacturer handles the application and includes the grant as a discount in the vehicle purchase price. An advertised vehicle price may already include that discount.
The grant does not pay towards the CCCampers conversion. Do not assume that it applies to every PV5 variant, a used or demonstrator vehicle, or a complete campervan supplied or registered as a motorcaravan from new.
Ask the seller to confirm eligibility for the exact vehicle, its registration category and your proposed conversion before committing. Grant amounts, eligible models and availability can change.
Check the current GOV.UK electric van grant guidance and eligible vehicles.

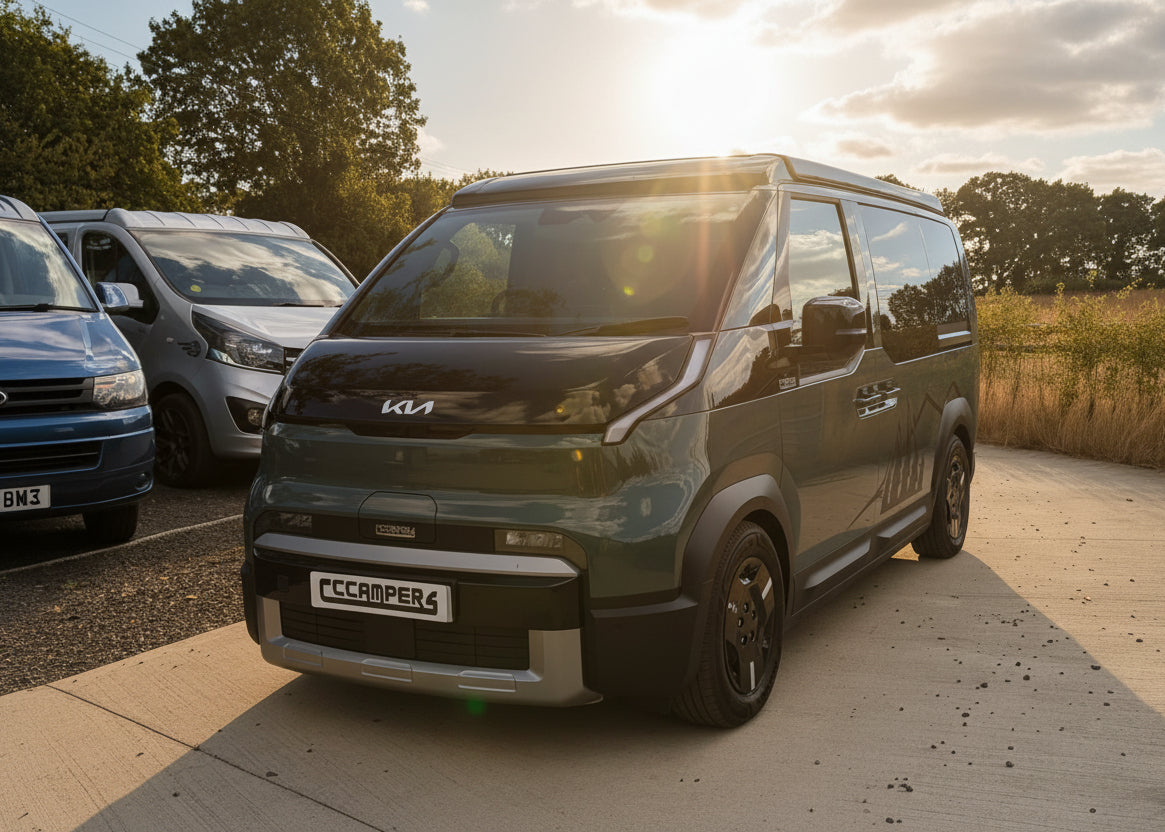

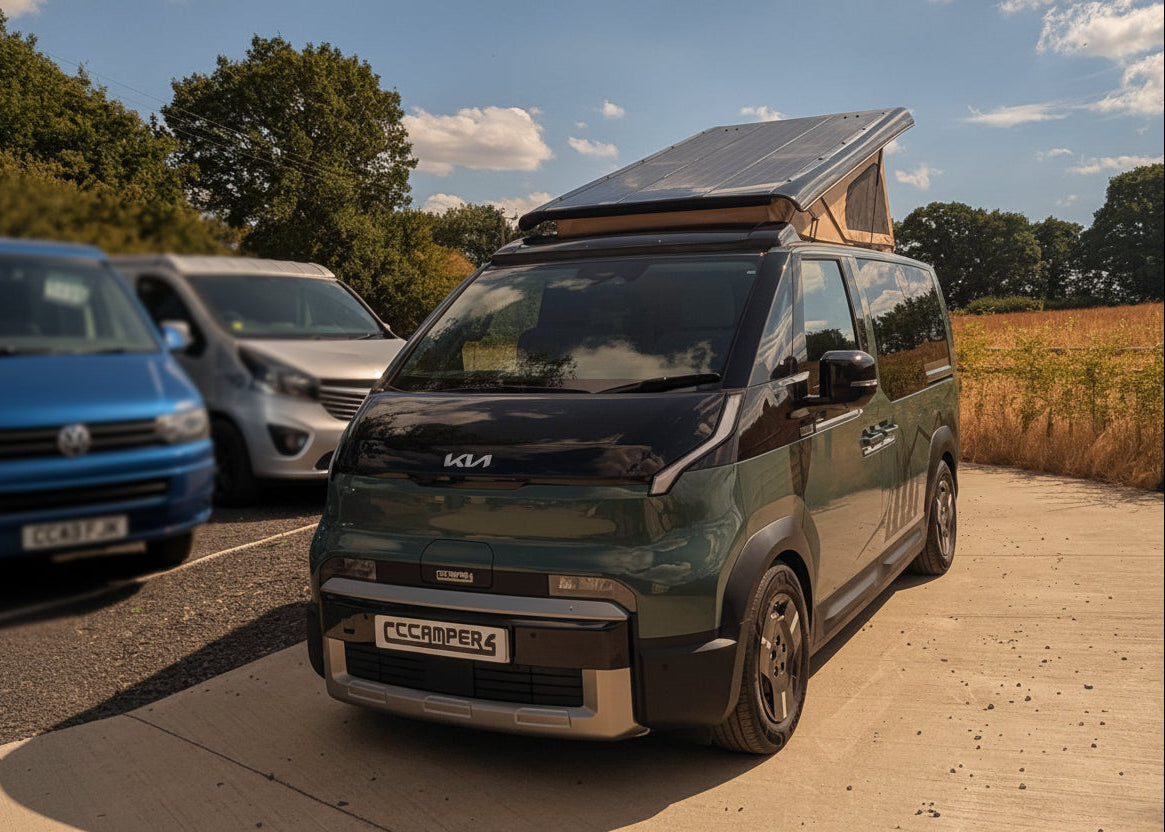

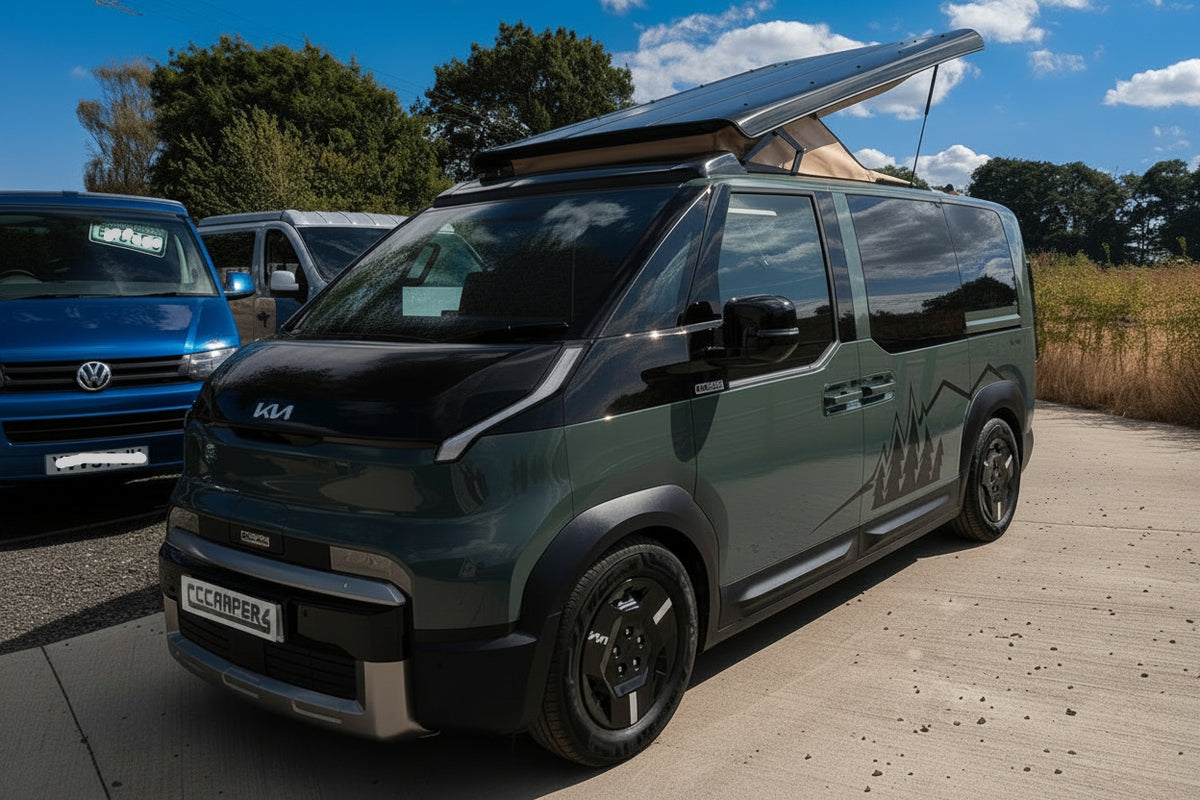

Stargaze panoramic pop-top roofTap or click to expand / collapse
The rear-opening Stargaze roof hinges at the front and raises at the rear, adding standing room and ventilation over the living area. Open the panoramic canvas when parked to enjoy the view and bring more of the outdoors into your campervan.
- Waterproof, durable, weather-tested marine-grade canvas.
- Panoramic canvas opening for views and ventilation.
- Standing headroom over the kitchen and living area.
- Designed for British touring conditions.
Included: Stargaze roof integration. Optional: roof bed and mattress, unless specifically included in your agreed order. Close and secure the roof before travelling.
More energy for your time awayTap or click to expand / collapse
The Shelsley uses two electrical systems for different jobs. A separate 100Ah lithium leisure battery supplies the fridge, lights and USB charging. The Kia’s factory-fitted 3.6 kW V2L supply draws electricity from the much larger driving battery for compatible mains appliances, including the induction hob.
The 100Ah leisure battery is therefore not the main energy store for induction cooking. In the standard V2L arrangement, mains appliances draw on the driving battery without needing a separate leisure-battery inverter for that supply.
With the same mains appliances running, access to the Kia’s larger driving battery can provide substantially longer use than a conventional 320Ah leisure-battery and inverter setup. The advantage comes from the larger available energy reserve, not V2L alone.
Camping and driving share that reserve, so you must keep enough charge for your next journey. Available energy and running time depend on the vehicle’s battery specification, starting charge, appliance demand and V2L operating limits. The full driving-battery capacity should not be treated as available for camping.
The 3.6 kW figure describes power output, not how long the supply will last. The combined demand of appliances used together must remain within the limits of the supply and fitted electrical system.
Standard Shelsley conversion specificationTap or click to expand / collapse
Leisure power and gas-free cooking
100Ah LiFePO₄ auxiliary battery and 30A chargers.
- 100Ah LiFePO₄ lithium leisure battery for the fridge, lights and USB charging.
- 30A DC-to-DC charger for charging while driving.
- 30A LiFePO₄ mains charger for campsite hook-up charging.

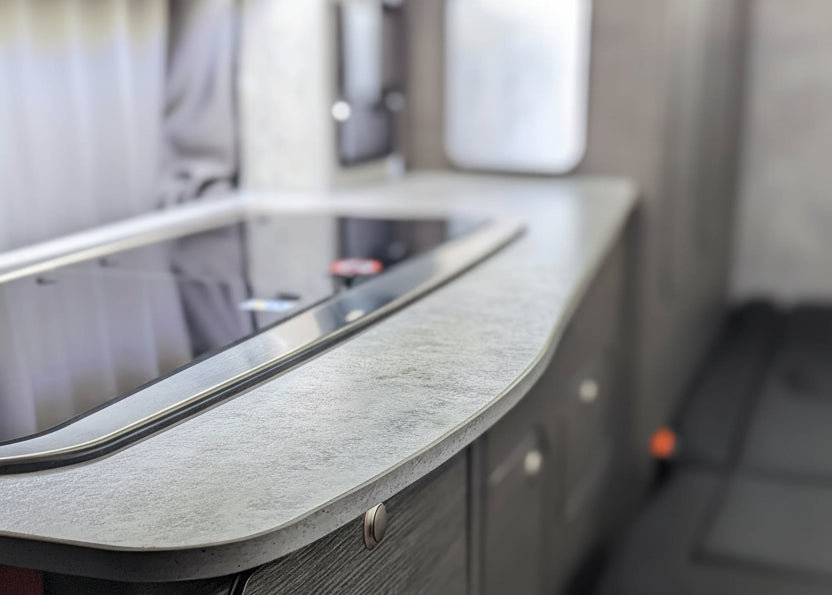

- 1,000W single induction hob, with a double-hob upgrade available.
- 7-inch touchscreen hub for system diagnostics and control.
Read the CCCampers Kia PV5 electric camper power guide.
Required Kia factory equipment
The standard Shelsley conversion uses the Kia PV5’s factory-fitted heat pump and 3.6 kW V2L. Confirm these before purchasing a base vehicle or booking your conversion.
- 3.6 kW V2L: supplies compatible mains appliances from the driving battery without a separate inverter for this arrangement.
- Kia factory-fitted heat pump: provides space heating through the vehicle’s heating system.
We explain the vehicle settings, parked operation and fitted electrical controls during handover. Heating and V2L use consume energy from the driving battery and must be considered alongside the range required for your journey.
If your PV5 lacks the heat pump or V2L, do not assume it meets the standard Shelsley requirements. We can assess alternative campsite heating and off-grid power equipment, but suitability and a revised specification must be agreed before booking.
Options to discuss include the Truma Varioheat Eezy 240V campsite heater and our Smart Lithium / UPS Inverter retrofit fitting service. These are alternative or additional equipment options, not the Kia factory heat pump, and require a vehicle-specific assessment.
Optional intelligent campsite power management
An intelligent grid-priority system can manage competing loads when connected to a campsite supply. For example, it can pause vehicle charging while a high-demand cooking appliance is operating and resume charging afterwards.
This is an optional upgrade, not included in the standard customer-supplied Shelsley conversion. The campsite connection rating and total appliance load must still be respected. Availability and compatibility are confirmed before ordering.

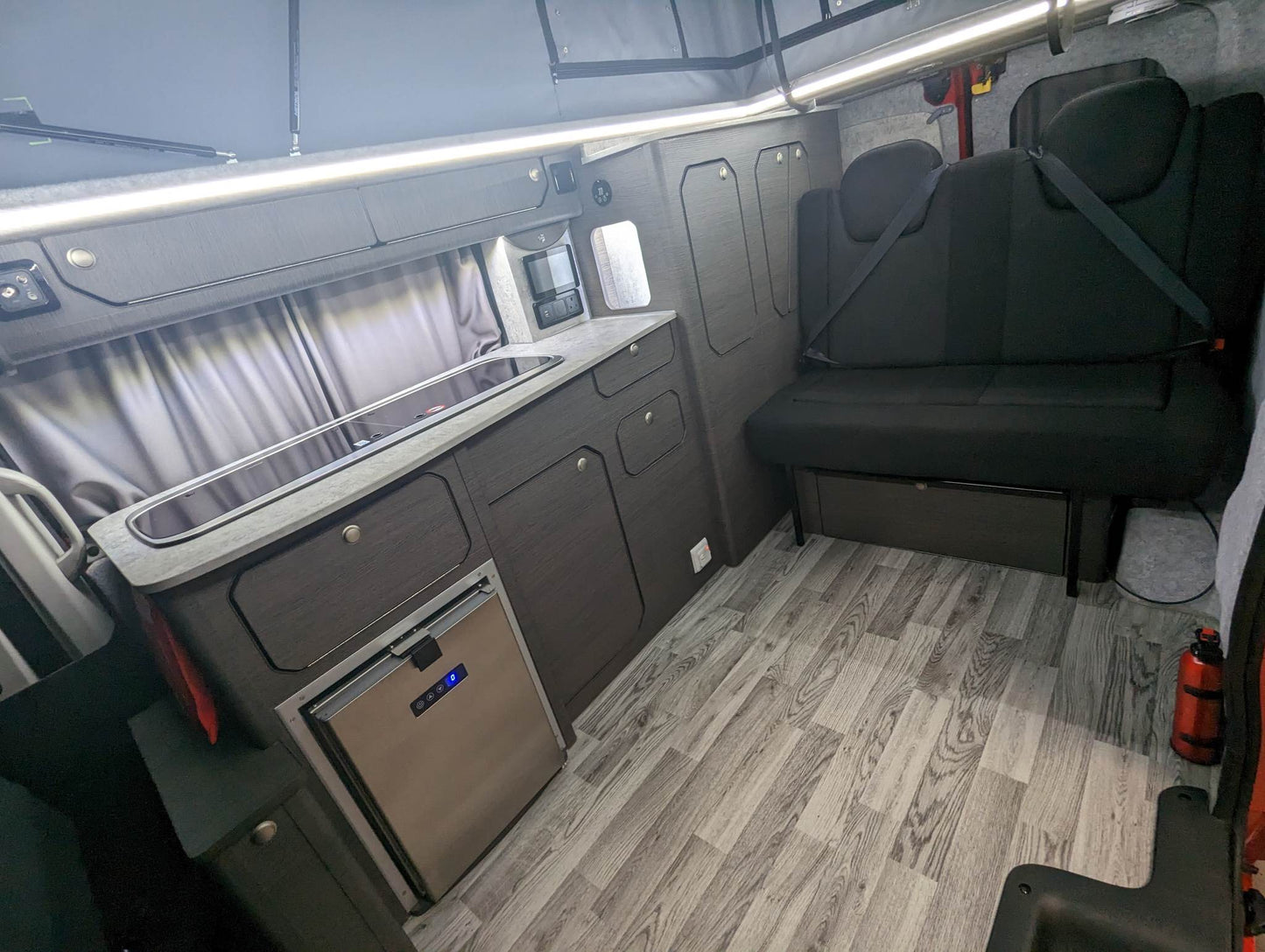

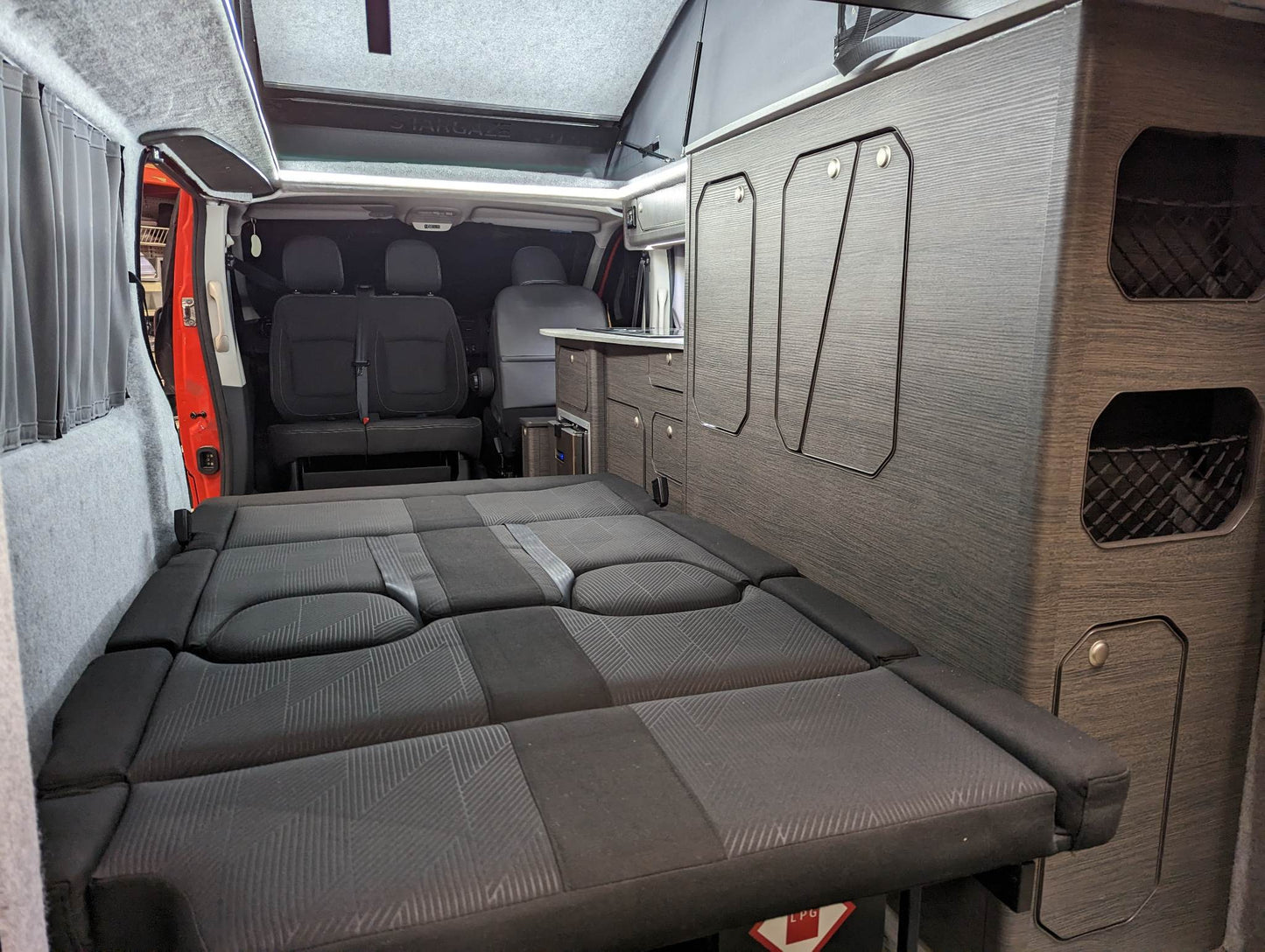

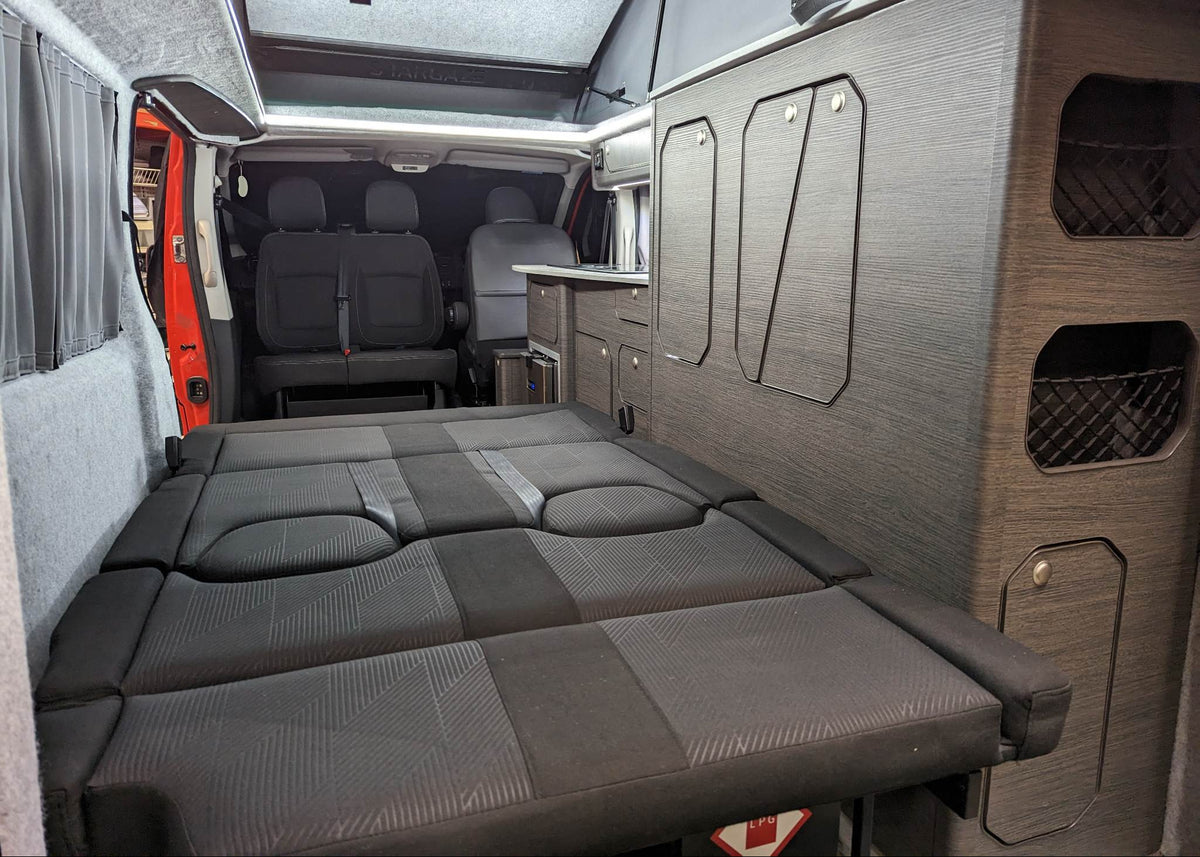

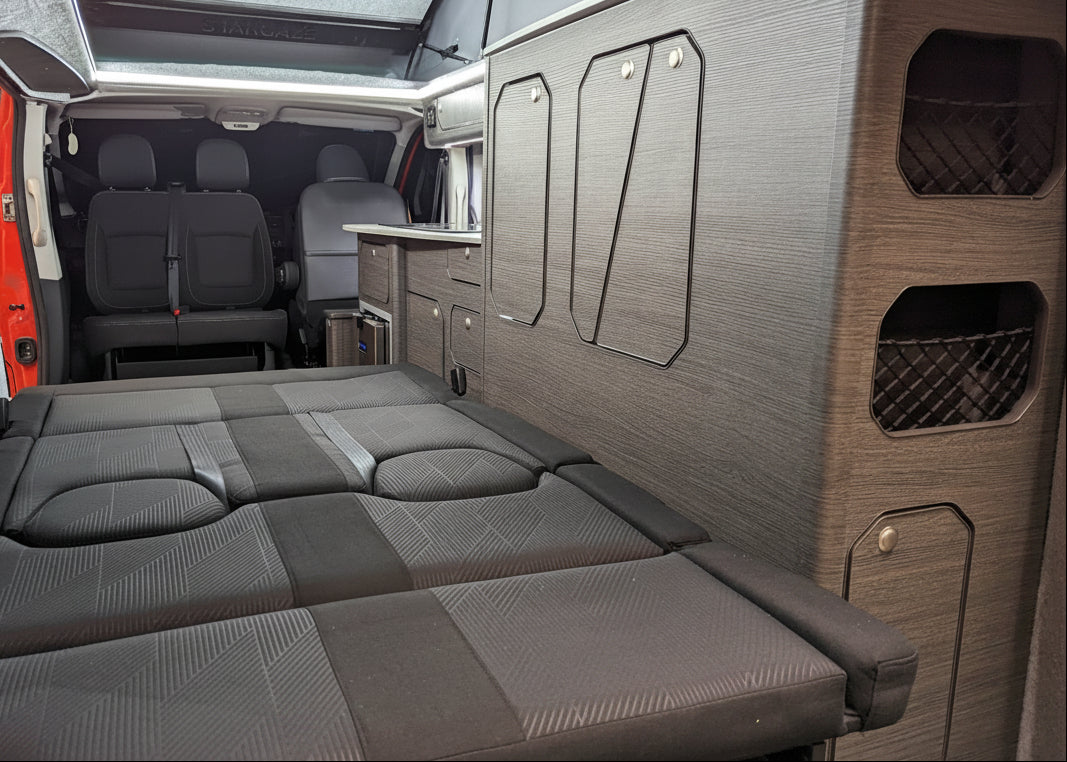

Seating, sleeping and comfort

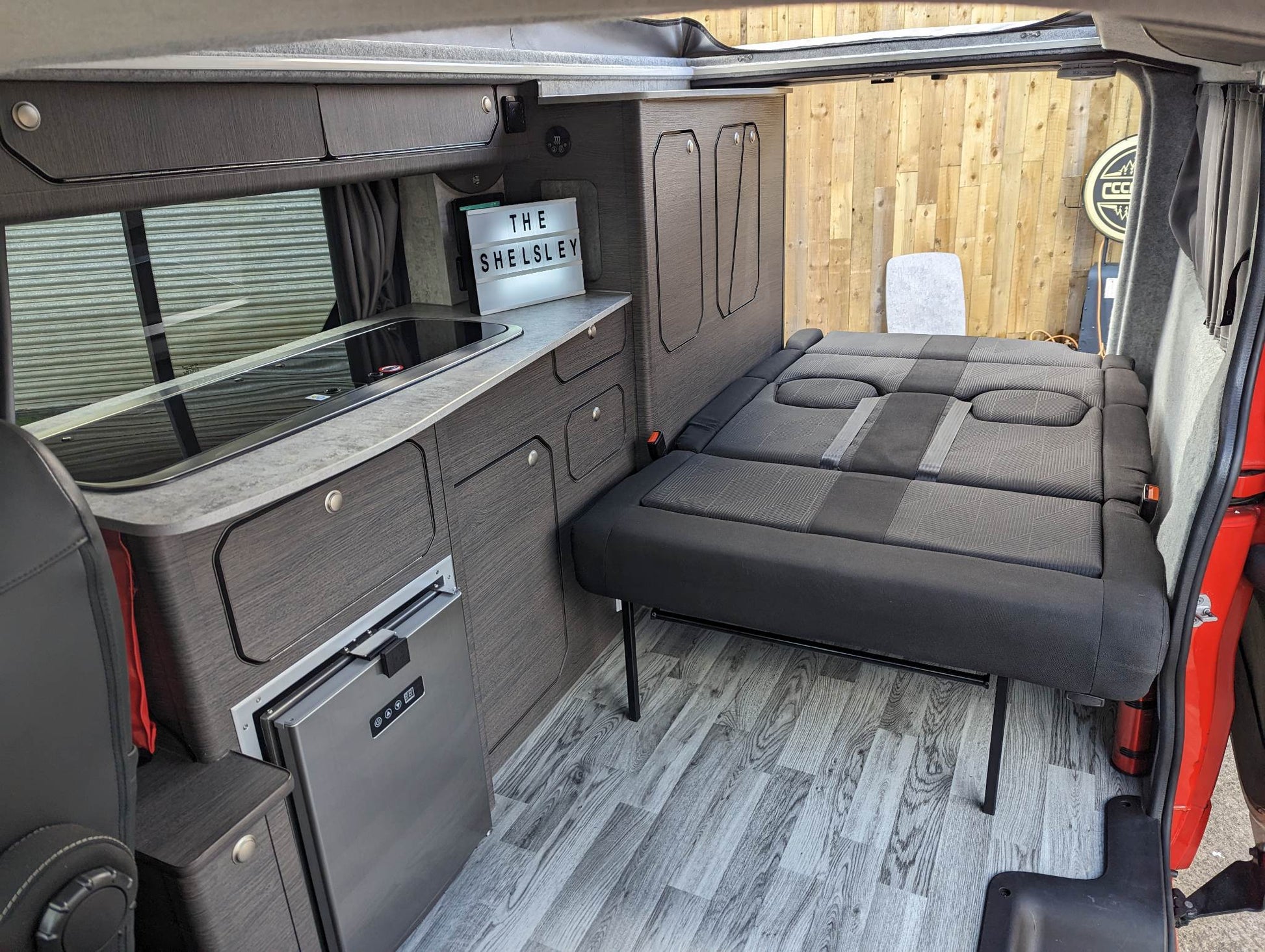

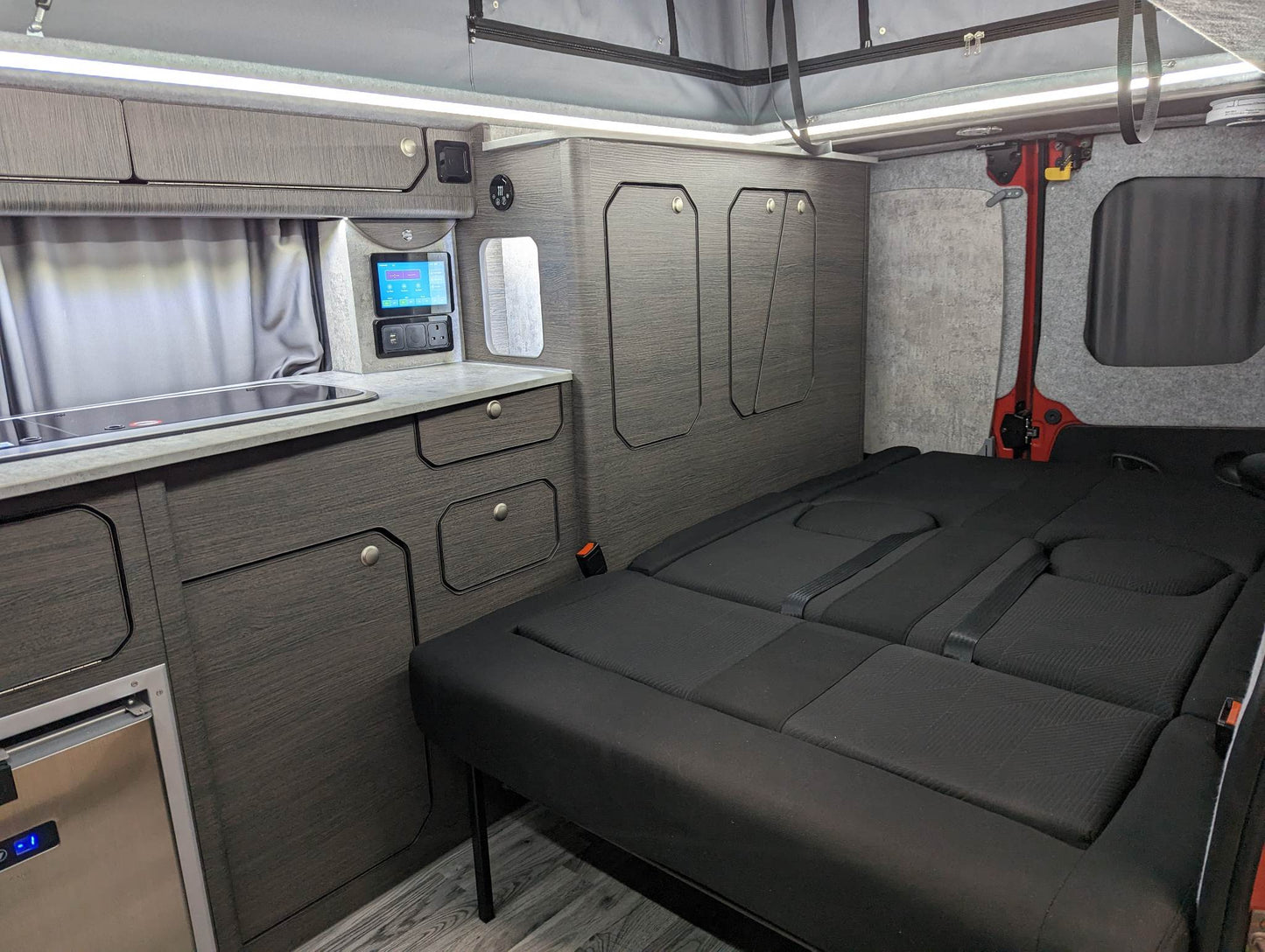

- M1-tested Rock ’n’ Roll bed with a reinforced chassis fitting frame and foam transition, with applicable test evidence confirmed for the installation.
- Laid-flat bed size, fixed or sliding: 1,100mm wide × 1,830mm long (approximately 3ft 7in × 6ft).
- Rear-seat ISOFIX mounting points, subject to the final approved seating configuration and child-seat compatibility.
- 120W integrated underfloor heating.
- Three-stage insulation for sound and heat control.
- Framed curtains for privacy and thermal retention.
- Dimmable halo lighting.
Optional bed-on-rails upgrade: +£3,000. This is not included in the standard conversion price. The fixed and sliding beds have the same sleeping dimensions; the upgrade adds the sliding rail system, not a larger bed. Compatibility, the final seating configuration, applicable installation evidence and child-seat suitability are confirmed before ordering.
The listed underfloor heating is separate from the Kia heat pump. Its supply requirements and operation are explained as part of your agreed specification and handover.
We confirm the approved travelling-seat count, restraints and child-seat compatibility for your particular conversion. A bed’s test description does not, on its own, establish approval for every vehicle installation.

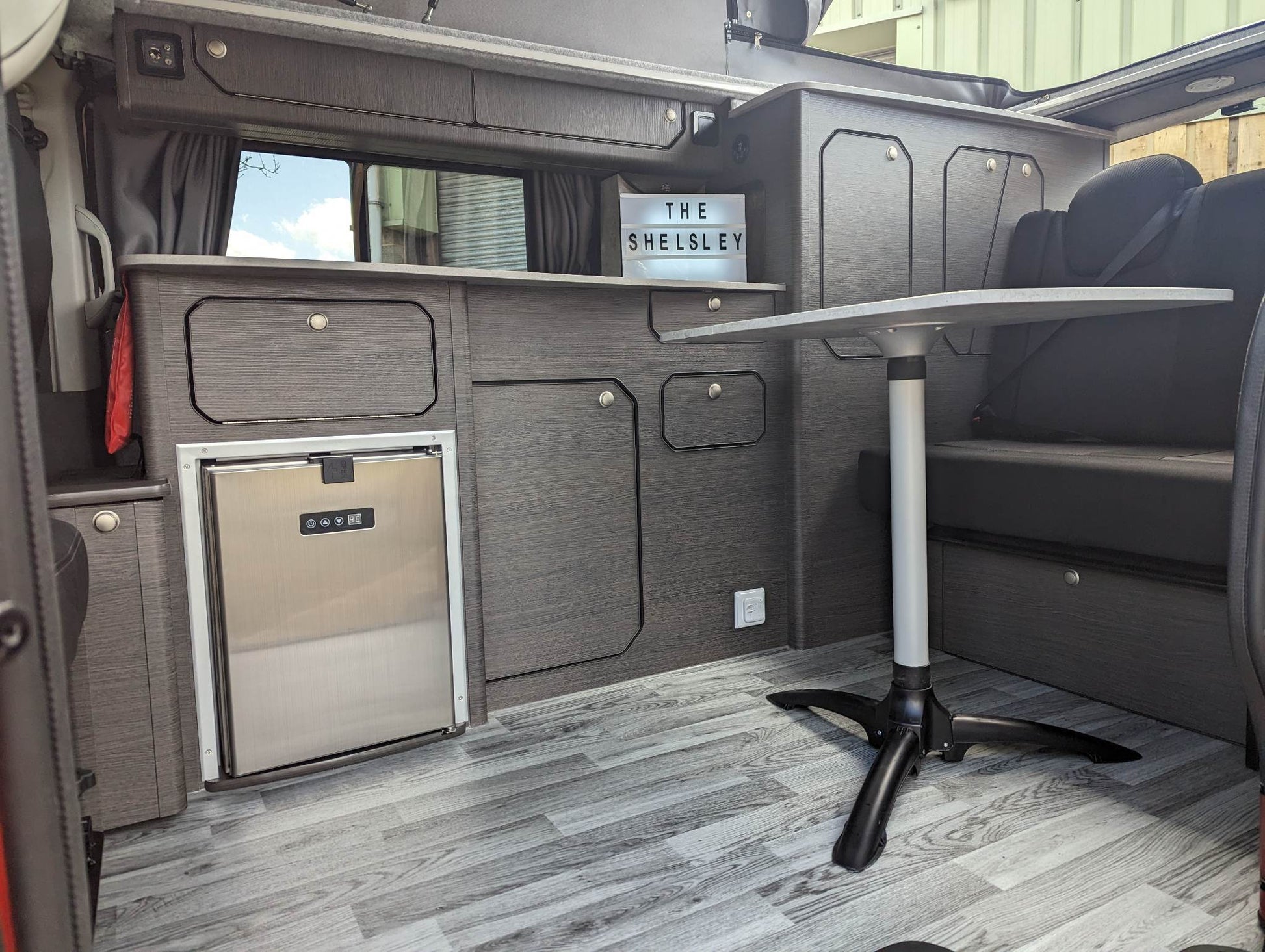

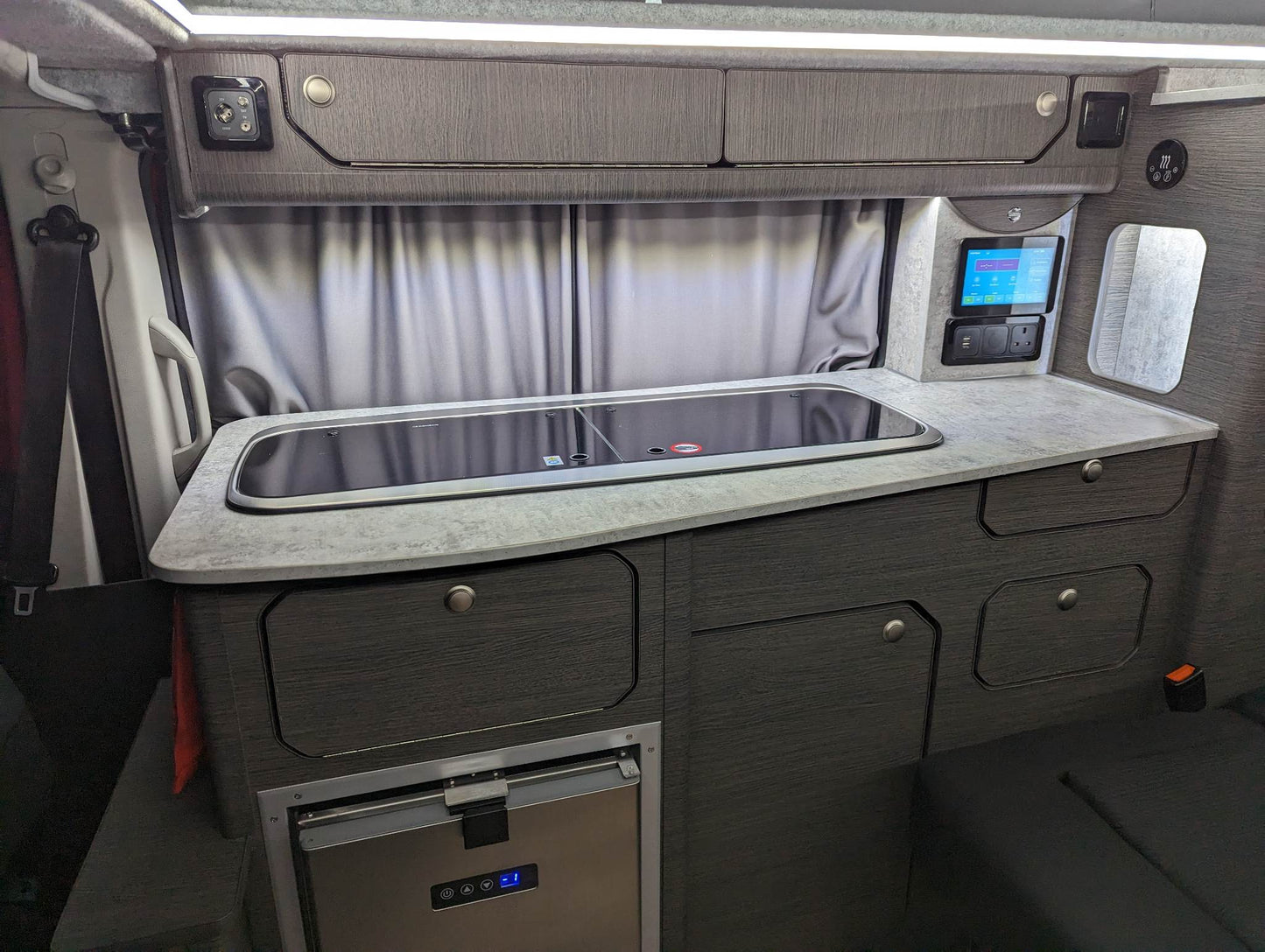

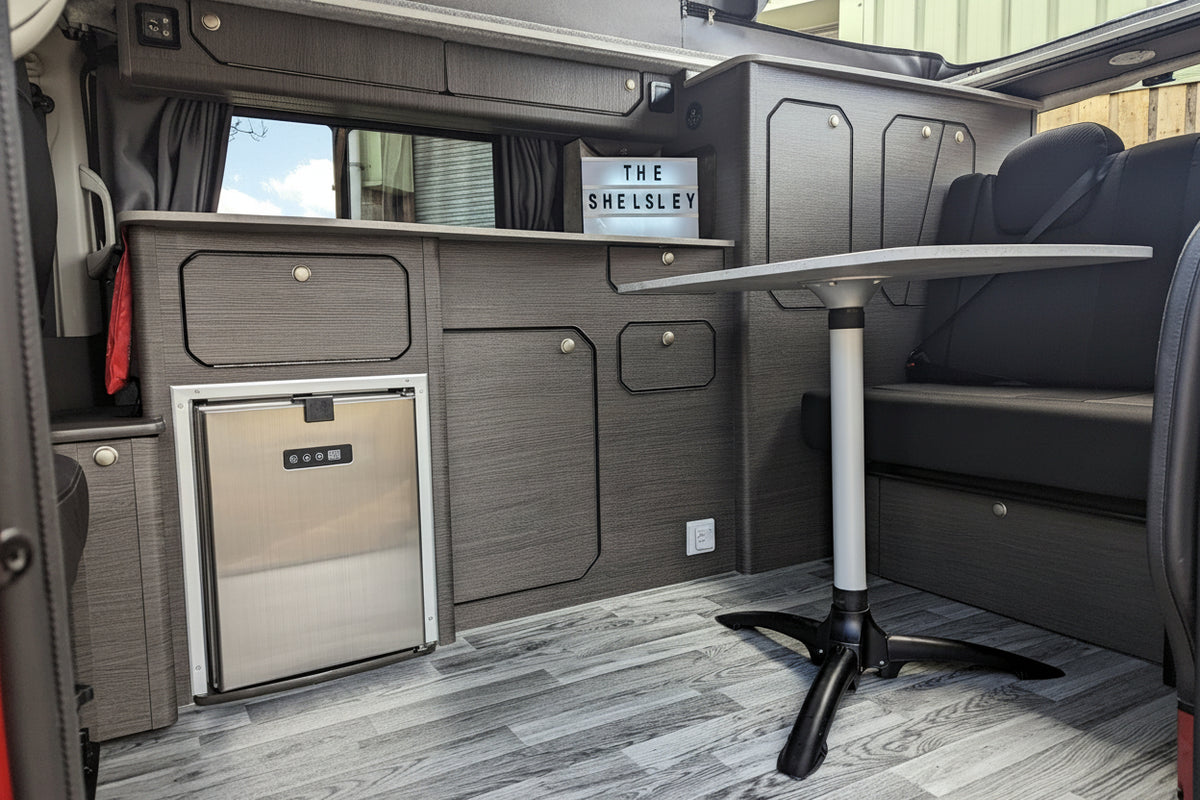

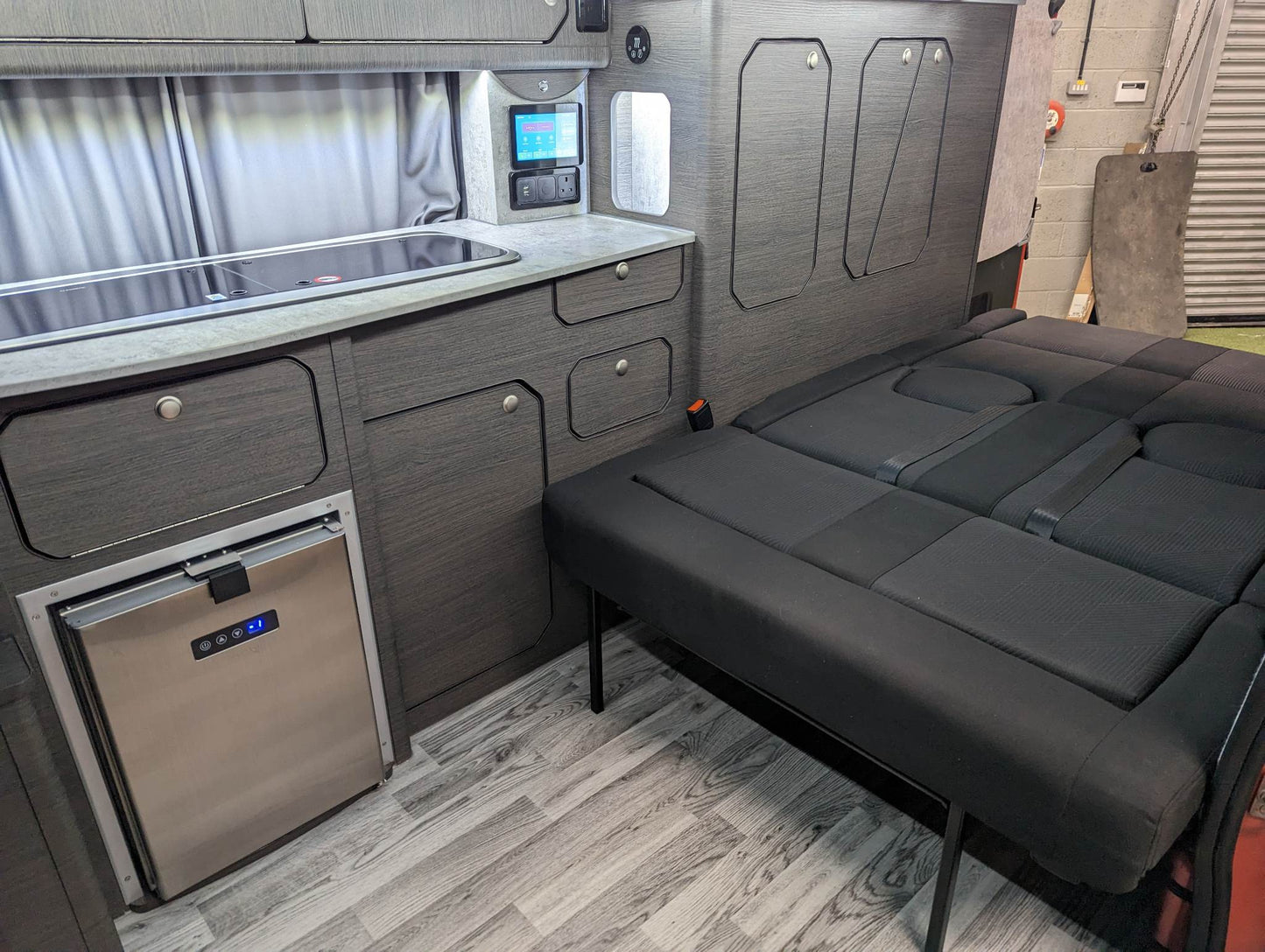

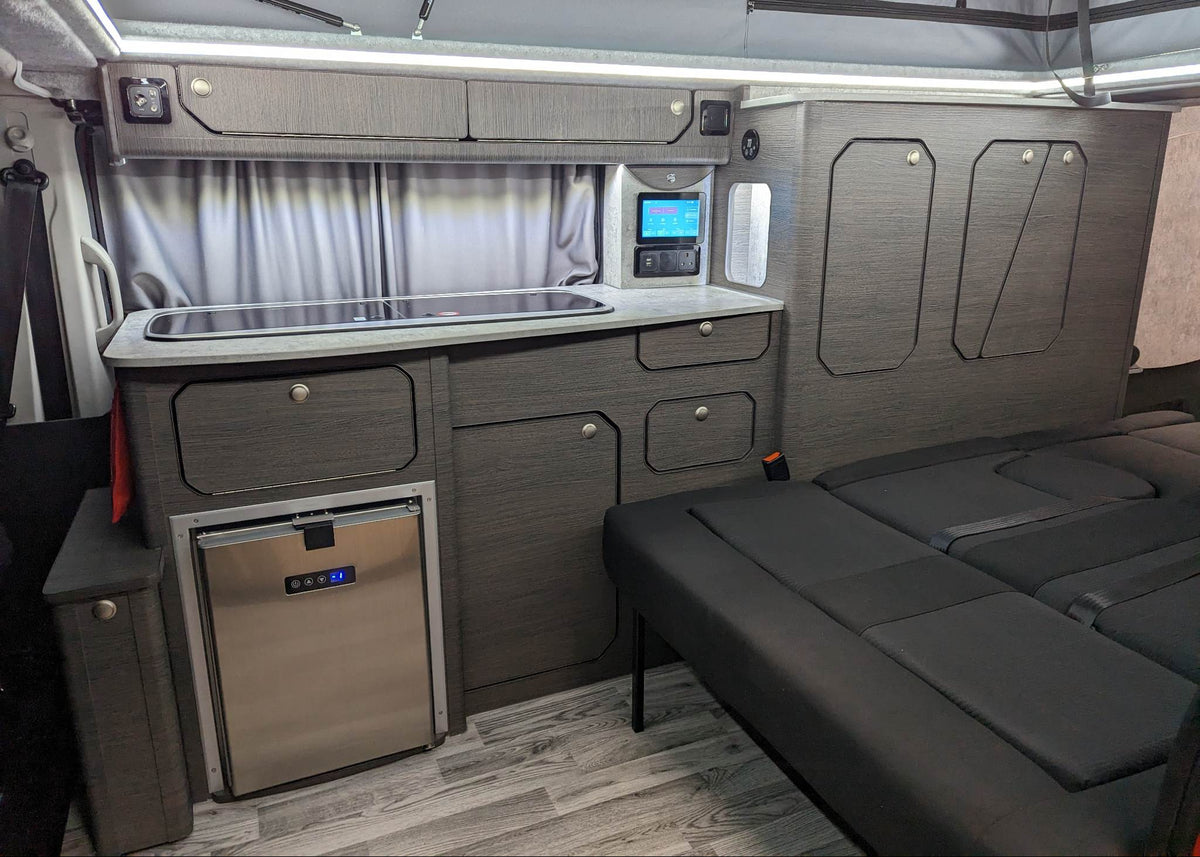

Kitchen and utilities
- Side-kitchen layout.

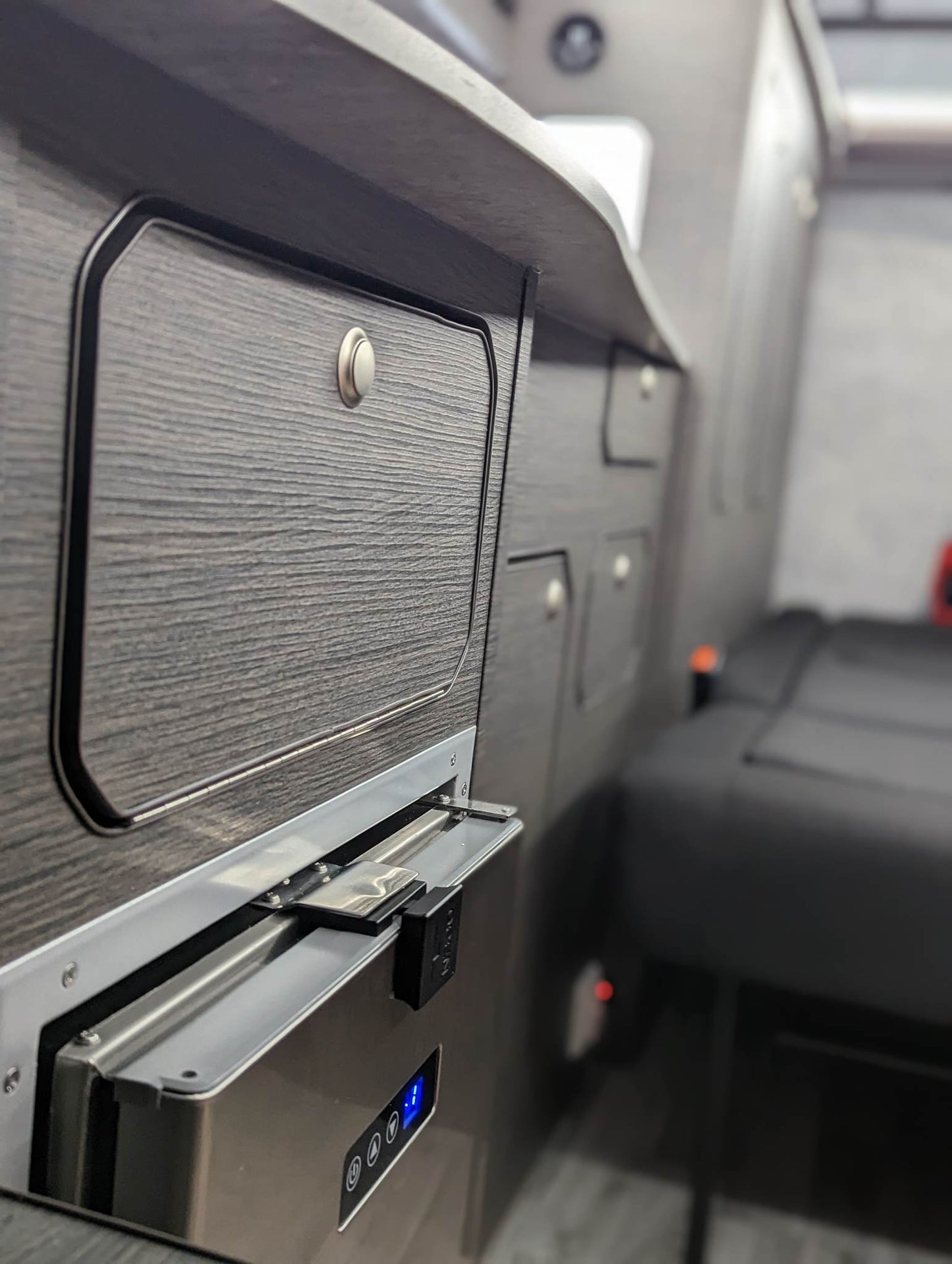

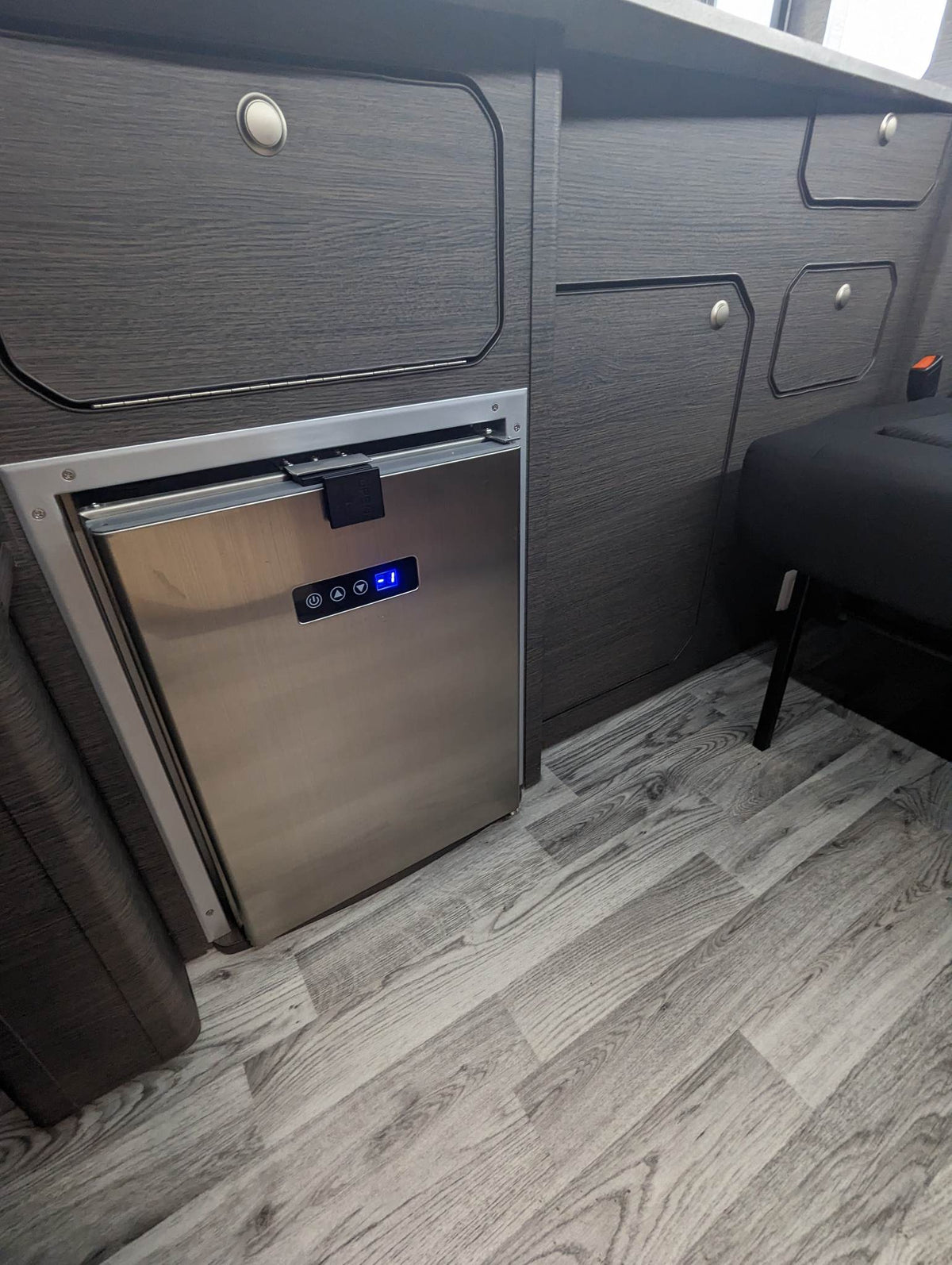

- 50L dual-hinged fridge.
- 30L fresh-water tank with digital level gauges.
- Double USB charging points.
- Tailored wall, floor and furniture finishes.
Exterior graphics and underbody protection
- Side graphics to complement your campervan’s exterior.
- Underseal applied to the underbody and exposed chassis components to help protect against road spray and corrosion.
- Tyre Protector puncture protection.
Dimensions and parking
The existing specification states a vehicle length of 4.69m, widths of 2,255mm with mirrors out and 2,100mm with mirrors folded, and a roof-closed height of 2,090mm.
Confirm your individual vehicle’s dimensions and the finished conversion height, including accessories, before relying on these figures for parking bays, garages or height barriers.
Payload: how much can your Shelsley carry?Tap or click to expand / collapse
These indicative examples use a stated gross vehicle weight of 2,785kg, a Shelsley build adding approximately 295kg to standard kerb weight, 75kg per person and a fixed 20kg allowance for pots and pans. The 71.2 kWh battery assumption adds a further 45kg.
Remaining payload is the total allowance for luggage, food, water and additional equipment. These are planning examples, not a guarantee for every Cargo or Passenger model. Confirm your vehicle’s actual kerb weight, plated gross vehicle weight, axle limits and Stage 2 documentation where applicable. Check whether the driver and fluids are already included in the stated weights.
| Occupancy | People | Pots and pans | Total load | Remaining: 51.5 kWh | Remaining: 71.2 kWh |
|---|---|---|---|---|---|
| Driver only | 75kg | 20kg | 95kg | 400kg | 355kg |
| Two people | 150kg | 20kg | 170kg | 325kg | 280kg |
| Three people | 225kg | 20kg | 245kg | 250kg | 205kg |
| Four people | 300kg | 20kg | 320kg | 175kg | 130kg |
At four occupants, these assumptions leave 175kg for the 51.5 kWh version or 130kg for the 71.2 kWh version. Additional luggage, food, water and equipment use that remaining allowance.
Optional equipment, including the bed-on-rails upgrade, may alter the finished conversion weight and available payload. Confirm the figures for your agreed build rather than assuming the standard examples apply unchanged.
Occupancy examples do not establish an approved travelling-seat count. Use actual occupant weights and account for everything carried. Do not exceed the vehicle’s plated gross vehicle weight or individual axle limits.
Workshop expertise and build documentationTap or click to expand / collapse
CCCampers combines IMI Level 3 TechSafe EV/hybrid training, NCC Academy Trained personnel and AWS Approved Workshop status, with specialist experience in electric campervan conversions and VCA vehicle approval processes.
The existing build specification references BS 7671 Section 721, the applicable parts of BS EN 1648, BS EN 1646-1, BS EN 721 and BS EN 13878. Protective earthing and bonding are considered for the fitted mains equipment. Seat and seat-belt anchorage requirements, including UN ECE R14 where applicable, depend on the actual installation and its supporting evidence.
Permanent safety ventilation remains important in a gas-free campervan. BS EN 721 addresses safety ventilation requirements. BS EN 1949 concerns LPG installations where fitted; the standard Shelsley uses induction cooking rather than an LPG cooking installation.
We explain the documentation and inspection records relevant to your agreed build. Applicable standards and any vehicle approval evidence depend on the work carried out, the vehicle and its final installation.
Optional upgrades and personalisationTap or click to expand / collapse
Choose finishes and equipment around the way you want to travel. Availability, compatibility and pricing are confirmed before ordering.
- Sliding bed-on-rails upgrade: Add flexibility to your Shelsley layout with a sliding bed-on-rails system.
- Intelligent campsite power management upgrade.
- Furniture and worktop finishes.
- Interior lining colours and flooring colours.
- Pop-top canvas colours.
- Roof colour-coding options, subject to confirmation for your Kia PV5 Stargaze roof.
- Optional roof bed and mattress, subject to compatibility.
- Exterior styling options to discuss: alloy wheels, rear bumper protector, HEKO wind deflectors, Helix Ci3 speaker upgrade, gloss-black front splitter, side skirts, rear diffuser/splitter and roof bars.
- Onboard hot water and external shower point, with the exact heater and supply requirements confirmed before ordering.
- Truma Varioheat Eezy 240V campsite heater as an additional or alternative heater, subject to assessment.
- 12V Chillbeater heater, subject to assessment.
- 200W solar panel and MPPT.
- Kia PV5 Fiamma F45s wind-out awning.
- Matching front and rear seat upholstery.
- iTrack S7 GPS tracker.
Kit out your campervan kitchenTap or click to expand / collapse
From the first brew of the morning to supper after a day exploring, the right accessories help make your campervan feel your own.
Browse campervan kitchen appliances and accessories.
These accessories are purchased separately unless expressly included in your order. Check each appliance’s power requirements against your fitted electrical system and the combined load of equipment used together.
Shelsley Kia PV5 conversion: frequently asked questionsTap or click to expand / collapse
Is the Kia PV5 included in the conversion price?
No. This is a conversion and fitting service for a suitable customer-supplied Kia PV5. You provide the van; CCCampers carries out the conversion.
How much does the Shelsley conversion cost?
The conversion starts from £24,999. Stargaze roof integration and the listed standard conversion equipment are included. The base vehicle is not included. Optional extras and the final specification are confirmed before ordering.
Can you convert both Kia PV5 Cargo and Passenger models?
Yes. The Shelsley can be fitted to suitable customer-supplied Cargo and Passenger vehicles. We check the individual vehicle’s factory equipment, condition, seating and payload before agreeing the build.
What factory equipment does the Shelsley need?
The standard specification requires the factory-fitted heat pump and 3.6 kW V2L. Speak to us before choosing your van. If either is absent, any alternative arrangement must be assessed and agreed separately.
What is the 100Ah leisure battery used for?
The separate 100Ah lithium leisure battery supplies the fridge, lights and USB charging. Compatible mains appliances, including the induction hob, use the Kia’s factory-fitted V2L supply, which draws energy from the driving battery.
What DC-to-DC charger is included?
The standard Shelsley conversion includes a 30A DC-to-DC charger for charging the leisure battery while driving.
Can V2L run camping appliances for longer than a separate leisure battery and inverter?
With the same mains appliances running, access to the Kia’s larger driving battery can provide substantially longer use than a conventional 320Ah leisure-battery and inverter setup. Actual running time depends on starting charge, appliance use, V2L operating limits and the charge retained for driving.
What provides the space heating?
The standard conversion uses the Kia’s factory-fitted heat pump for space heating. The listed 120W underfloor heating is a separate fitted system. We explain the settings, supply requirements and operation during handover.
Is intelligent campsite power management included?
No. It is an optional upgrade on this customer-supplied Shelsley conversion. Availability and compatibility are confirmed before ordering. The campsite connection rating and total appliance load must still be respected.
Does the Shelsley include ISOFIX?
Yes. Rear-seat ISOFIX mounting points are included on the Rock ’n’ Roll bed, subject to the final approved seating configuration and child-seat compatibility. We confirm the finished seating arrangement and compatibility during consultation.
Is a bed-on-rails upgrade available?
Yes. The optional bed-on-rails upgrade costs an additional £3,000. Compatibility, the final seating configuration, applicable installation evidence and child-seat suitability are confirmed before ordering. It is not included in the standard conversion price.
Is a roof bed included?
No. Stargaze roof integration is included, but the roof bed and mattress are optional extras unless specifically included in your agreed order.
Is the Shelsley gas-free?
Yes. The standard conversion uses induction cooking and electrical equipment rather than an LPG installation for the living equipment. Any requested changes are reviewed as part of the final specification.
How long does the conversion take?
Typical build time is 6–8 weeks from drop-off. We confirm the schedule and agreed specification during consultation.
Where is the conversion fitted?
At the CCCampers workshop in Bayton, near Kidderminster, Worcestershire, DY14 9NE. Workshop visits are by appointment.
What training and workshop credentials does CCCampers have?
CCCampers combines IMI Level 3 TechSafe EV/hybrid training, NCC Academy Trained personnel and AWS Approved Workshop status, with specialist experience in electric campervan conversions.
Request the current Shelsley conversion specificationTap or click to expand / collapse
Contact us for the current specification and quotation for your customer-supplied Kia PV5 Cargo or Passenger. We’ll confirm the factory equipment, layout, seating, child-seat compatibility, payload assumptions, included equipment and optional extras for your particular vehicle.
Your agreed quotation and order confirm the final specification. The base vehicle is not included in this conversion service.
Plan your Shelsley campervanTap or click to expand / collapse
Tell us about your Kia PV5 and how you want to travel. We’ll check its suitability, review the factory equipment and help you choose an interior and specification that suit your plans.
Workshop: CCCampers Ltd, Units 3–5, Woodside Business Park, Beach Hay, Bayton, Kidderminster, Worcestershire, DY14 9NE, United Kingdom.
We welcome customers from Worcestershire, the West Midlands, Shropshire, Herefordshire, Gloucestershire, Wales and across the UK. Workshop visits are by appointment.
Book a Shelsley conversion consultation · Call 0333 456 3345 · Email sales@cccampers.co.uk
