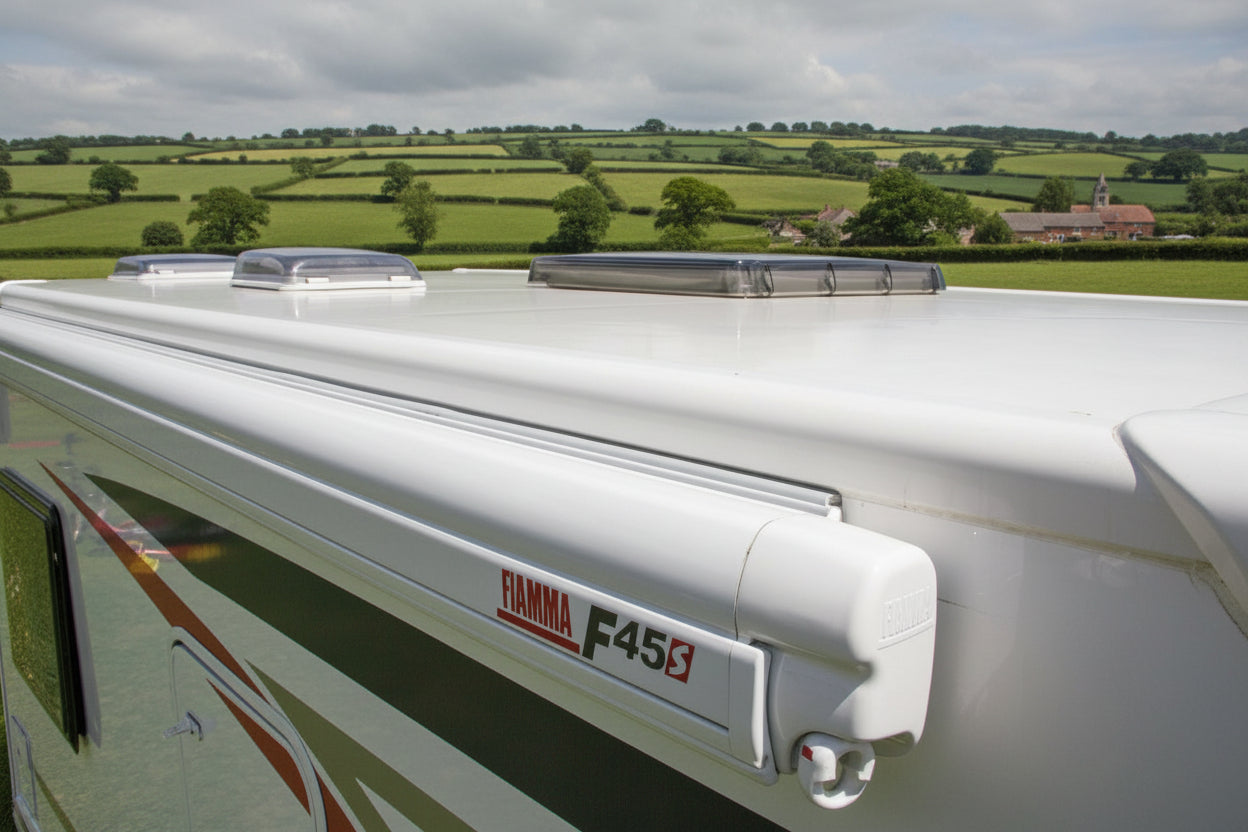

Fiamma F45S Wall-Mounted Box Awning – Fully Fitted

Europe's most popular box awning, professionally installed at our Worcestershire workshop by IMI TechSafe and NCC Academy certified technicians. The Fiamma F45S delivers superior quality, effortless wind-out operation, and a spacious canopy for sun shade or rain protection — right alongside your motorhome or caravan.

Our fully fitted service includes correct bracket selection, secure bolt-through-wall mounting, and complete weather sealing. Once ordered, our team will contact you to schedule your fitting appointment at our specialist workshop in Worcestershire.

Choose Your Configuration

Select your case colour, awning size (230–450cm), and optional accessories using the dropdowns above.

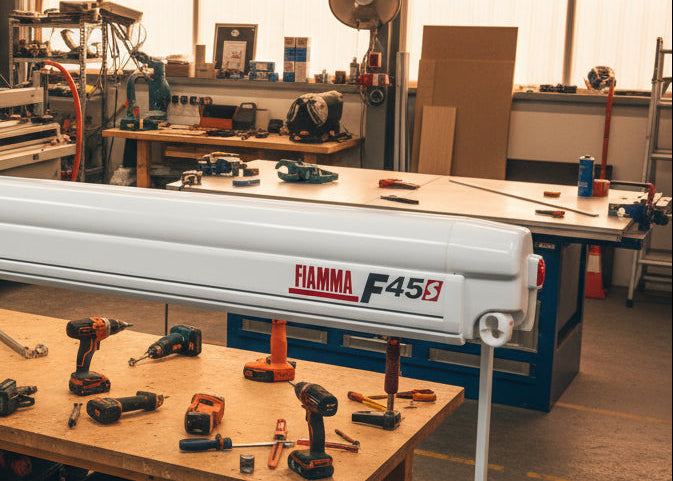

Polar White Case — Classic finish for white coachbuilt motorhomes and bright paintwork.

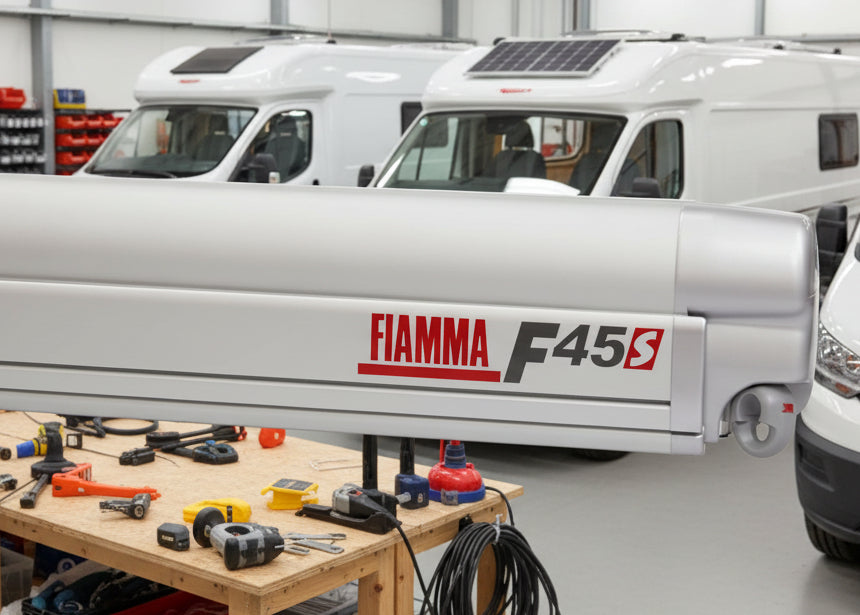

Titanium Case — Sleek metallic silver for modern silver, grey, or custom metallic schemes.

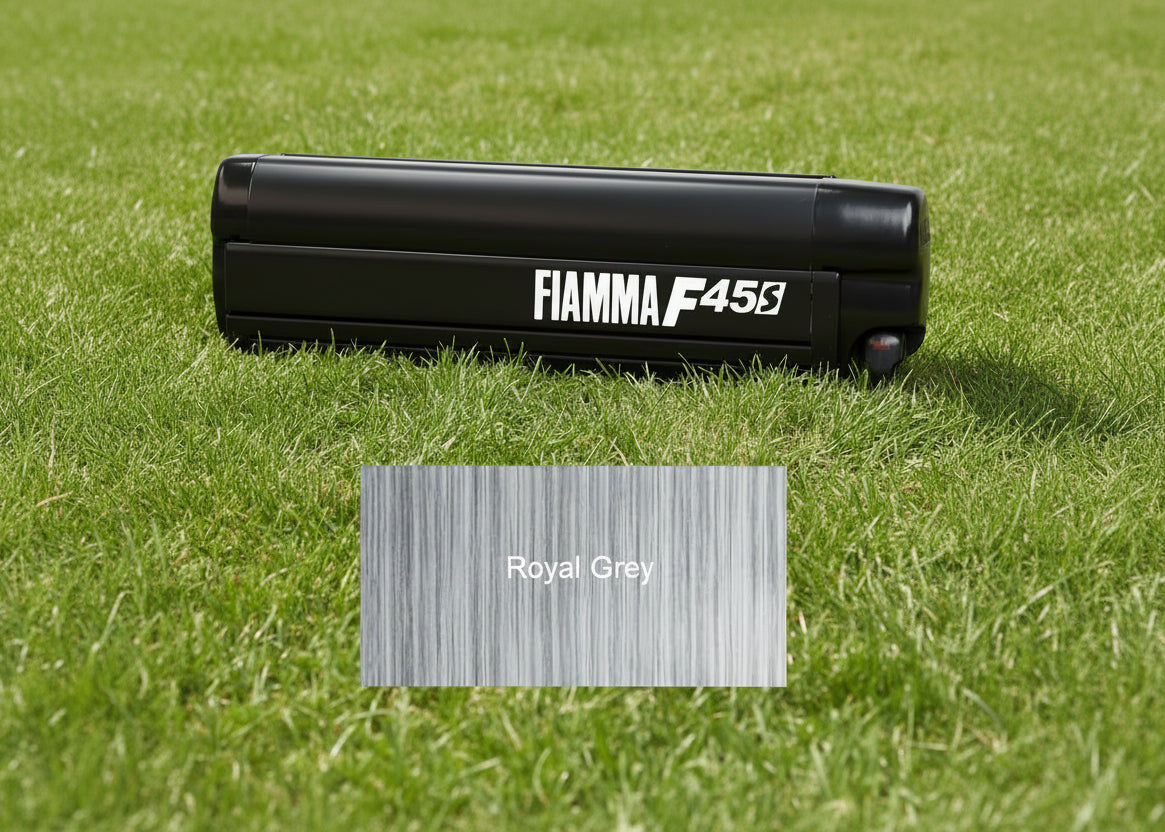

Deep Black Case — High-contrast premium dark finish for black trim, dark paint, or stealth builds.

All variants are supplied with the Royal Grey canopy fabric as standard.

Optional Upgrades (Select at Checkout)

Fitted Remote LED Lighting — 12V LED strip fitted inside the awning case, remote-controlled. Minimal leisure battery draw. Perfect for evening use.
Fitted Rain Guard Seal — Eliminates the "waterfall" effect between your vehicle roof and awning case when opening the door in rain. Highly recommended for UK camping.
LED Lighting + Rain Guard — Both upgrades combined at a bundled price.

Key Engineering Features

Multi-Layer Royal Grey Canopy Fabric — Tear-resistant, UV-reflective, flame retardant, fully washable, and rot-proof. Safe to stow temporarily damp.
Silent Auto-Lock Winch — Exclusive self-locking mechanism with long-life aluminium parts. No noise, no hook-and-release.

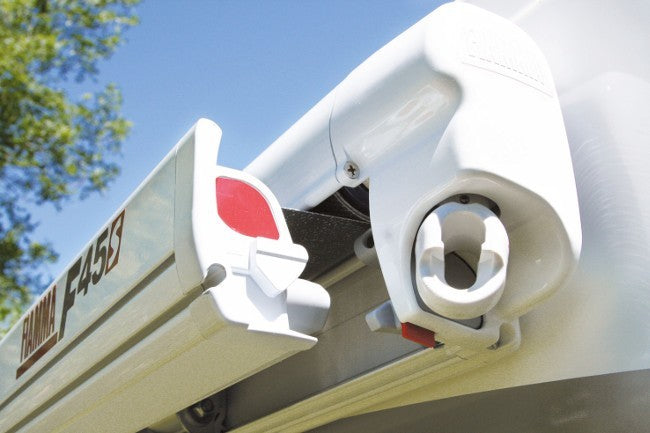

Dual Security Indicators — Visual confirmation at both ends that the front bar is fully locked before travelling.

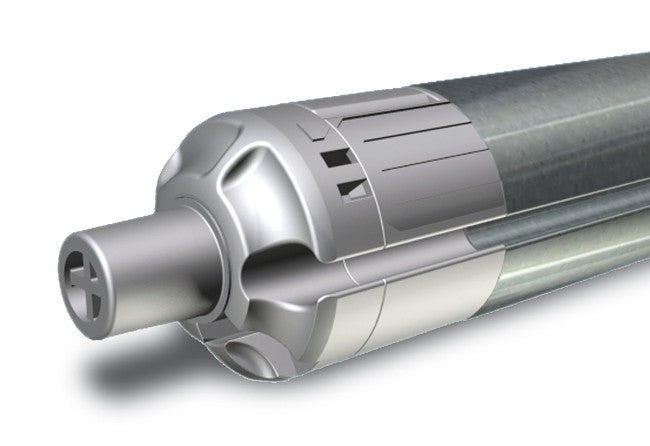

Patented Presto Fix Adjustment — Easy recalibration of the front bar closing mechanism over years of use.
One-Way Roll System — Prevents the canopy from rewinding incorrectly. Retracts perfectly every time.
Dual Shock Absorbers — Absorbs wind impact and vibration before forces reach your vehicle wall.

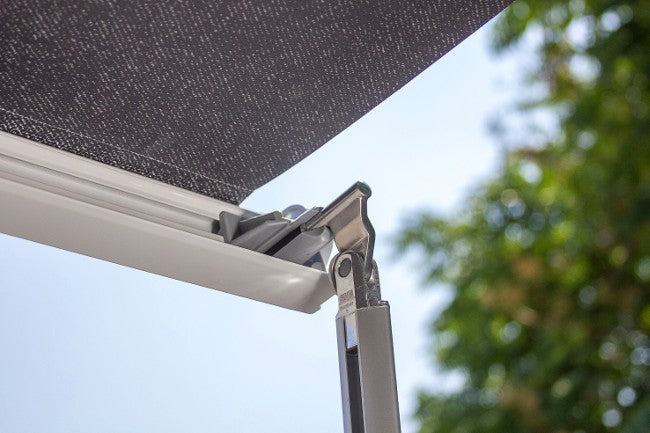

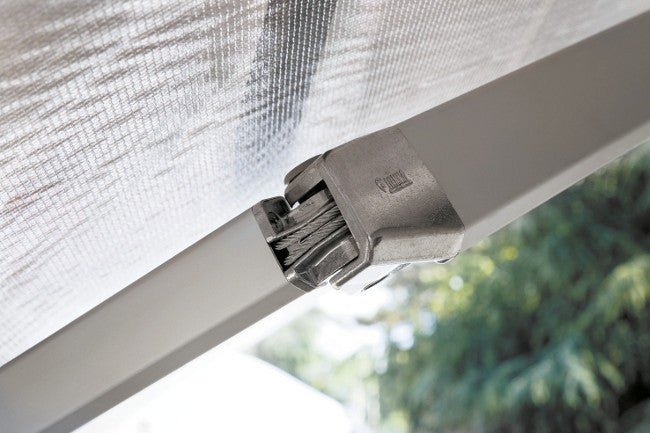

Extra-Strong Articulated Arms — 3.5mm steel wire cables, proof-tested for 10,000+ open/close cycles.

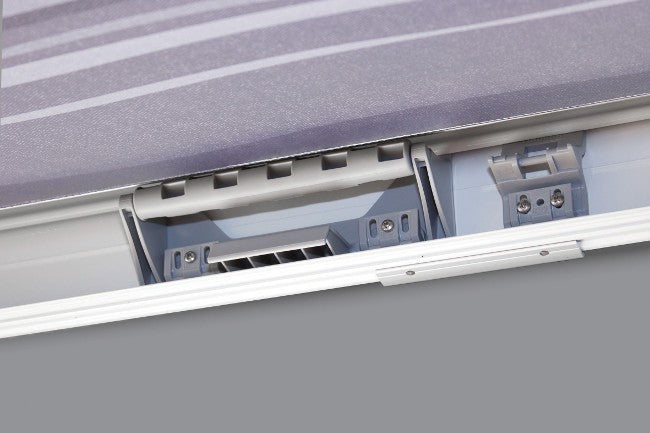

Double Lead Bar Guide — Dual channel accommodates front panels, shades, or a full Fiamma Privacy Room.

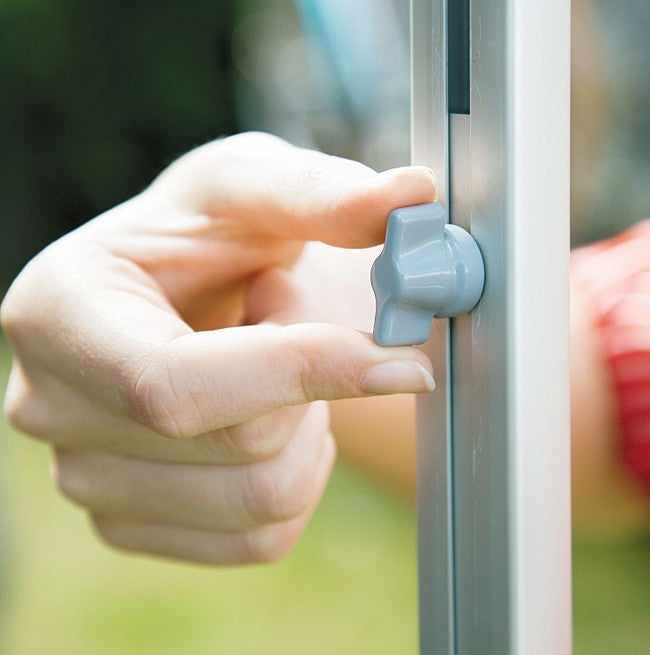

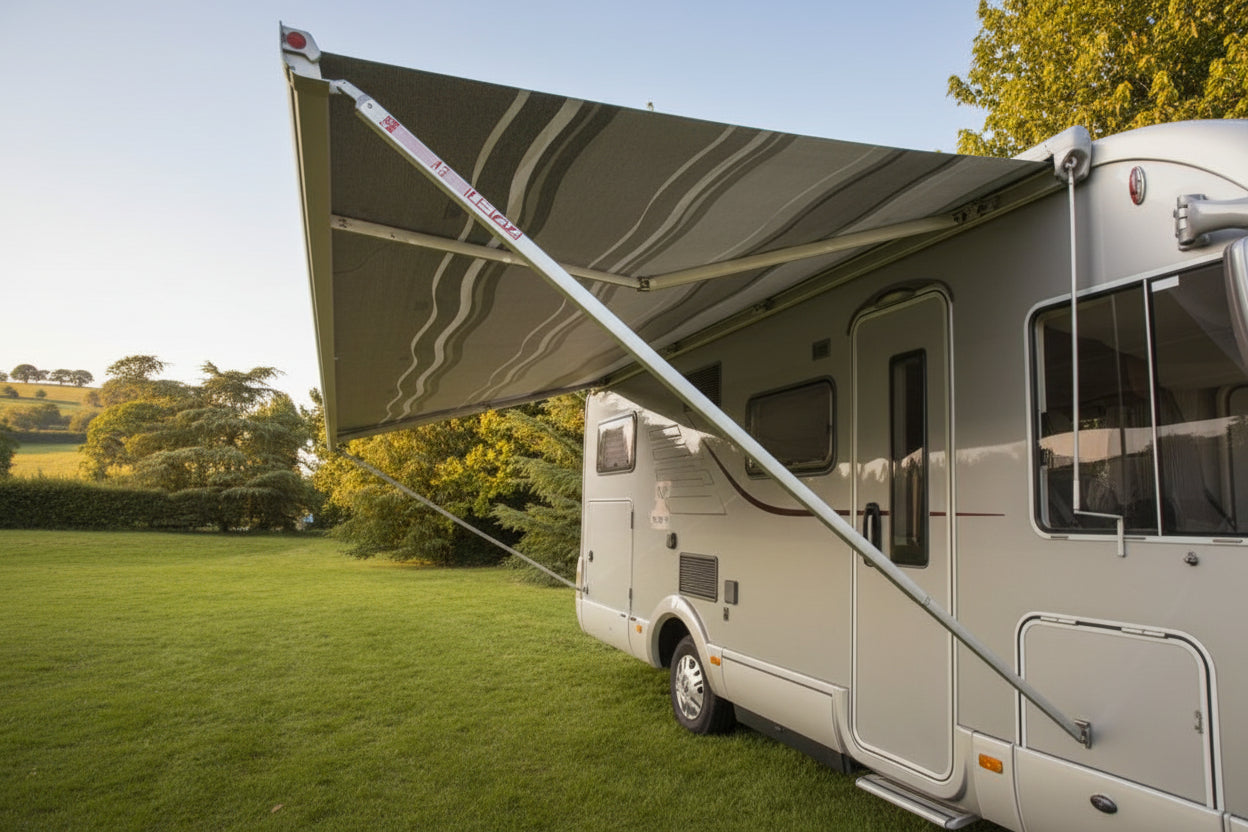

Telescopic Support Legs — Adjustable for height and incline; fold neatly inside the case when stowed.

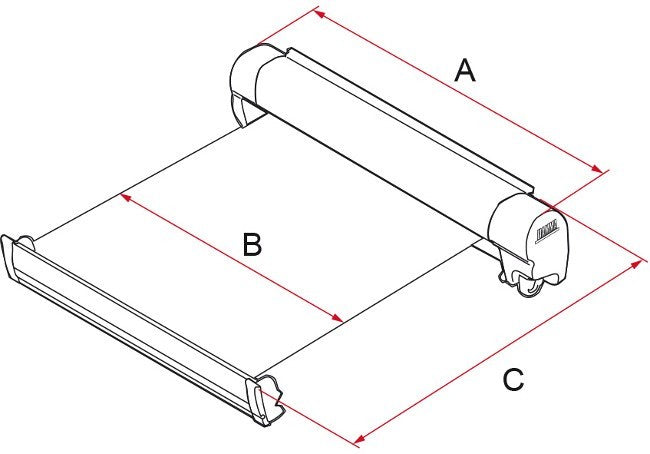

Fiamma F45S Size Guide

Model	Case Length	Fabric Length	Extension	Shade Area	Weight
F45S 230	231 cm	214 cm	150 cm	3.2 m²	16.5 kg
F45S 260	263 cm	247 cm	200 cm	4.9 m²	19.5 kg
F45S 300	308 cm	292 cm	250 cm	7.3 m²	23.0 kg
F45S 350	348 cm	331 cm	250 cm	8.3 m²	25.0 kg
F45S 375	375 cm	357 cm	250 cm	8.9 m²	26.0 kg
F45S 400	398 cm	381 cm	250 cm	9.5 m²	27.0 kg
F45S 425	423 cm	405 cm	250 cm	10.1 m²	28.2 kg
F45S 450	448 cm	431 cm	250 cm	10.8 m²	29.5 kg

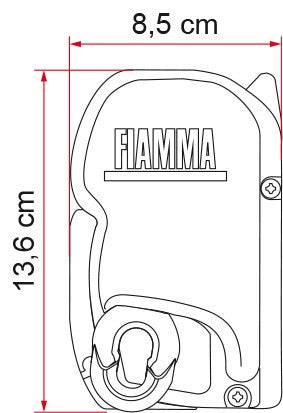

F45S box height: 13.6 cm (with a depth of 8.5 cm)

What's Included

1× Fiamma F45S Awning (Royal Grey canopy, choice of case colour)
1× Fiamma Winding Handle
4× Ground Anchor Pegs
Awning Leg Wall Support Kit
Full Workshop Installation & Weather Sealing
Fiamma Tension Rafter (included with 400 and 450 lengths)

Frequently Asked Questions

Which size should I choose?
Measure the usable wall length on your vehicle's offside. The case length (A) should not exceed your available wall space. For most panel vans and small motorhomes, 230–300cm is ideal; larger A-class motorhomes and caravans typically suit 350–450cm.

Will the LED lighting drain my leisure battery?
No. Our LED systems are 12V and highly efficient — designed for minimal draw on your leisure battery during normal evening use.

Is the Rain Guard worth it for UK use?
Yes. It seals the gap between your vehicle roof and the awning case, preventing water from cascading down when you open the door in rain. Strongly recommended for UK and European touring.

Where is fitting carried out?
All installations are completed at our specialist workshop in Worcestershire. After ordering, our team will contact you to book your fitting slot.

How long does fitting take?
Typically a half-day appointment. We'll confirm the exact duration when booking, based on your vehicle type and chosen accessories.

Can this be fitted to any motorhome or caravan?
The F45S is compatible with the vast majority of motorhomes and caravans. Our certified technicians will assess your vehicle's wall construction and select the correct bracket system at fitting.
